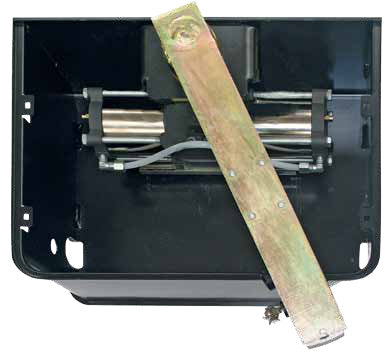

• Hydraulic swing-gate motor in Qatar, with a silver hydraulic cylinder in a black steel housing and brass-toned mounting bar.
1 1

SEA automation Super Full Tank 500 G6T30 SB | Hydraulic Swing Gate Motor | Qatar

SEA automation Super Full Tank 500 G6T30 SB | Hydraulic Swing Gate Motor | Qatar

QAR 75.000,00
QAR 75.000,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product identity

The SEA Super Full Tank 500 G6T30 SB is a hydraulic swing-gate motor for heavy swing-gate leaves. The SEA 2026 catalogue lists a maximum leaf weight of 2,000 kg and maximum leaf length of 9 m. These limits must be assessed together with gate geometry, installation dimensions, and site conditions.

Specifications and features

  • Manufacturer code: 10701456; model: SUPER FULL TANK 500 G6T30 SB THREEPHASE 230V, no brake.
  • Three-phase 230V supply, 6 litres/minute pump capacity, and 500 mm stroke.
  • Maximum opening angle: 120°; rod diameter: 30 mm.
  • SB version is without hydraulic lock; compatible with the UNIGATE INVERTER control board.
  • Catalogue maximum duty cycle: 100% with a UNIGATE control unit and speed set at 100%.
  • Oil-lubricated mechanical components, adjustable bypass valves for maximum thrust, steel oscillating rear fixing fork, machined aluminium hydraulic distributor, and hydraulic closing slowdown.
  • A stainless-steel rod is available on request. SEA recommends an SB version with an electric lock for leaves over 4 m.

Use cases and installation assessment

The SEA Super Full Tank 500 is intended for heavy swing-gate leaves, with catalogue limits of up to 2,000 kg and 9 m per leaf. Merchant-listed ideal settings include properties and palaces. Selection should account for gate geometry, installation dimensions, wind loading, mounting geometry, electrical supply, safety devices, and site conditions. For Qatar installations, assess heat, dust exposure, and maintenance access. Professional assessment is required before selecting the system; provide leaf dimensions, estimated weight, hinge geometry, desired opening angle, peak traffic, and site photos when requesting a quotation.

This listing is for the external Super Full Tank actuator, not the underground Super Compact 2000 or a complete gate automation kit. Confirm operator quantity, controller, electric lock, remotes, photocell, flashlight, safety accessories, installation scope, price, and stock before ordering.

Included, care, and warranty

Merchant-listed items: remotes, photocell, and flashlight. The listing describes the operator and is not a complete kit; confirm box contents and supplied accessories before ordering. Warranty: 2 years. Hydraulic servicing should follow manufacturer instructions and be carried out by qualified technicians.

View full details

Frequently Asked Questions

What are the maximum gate weight and leaf length for the SEA Super Full Tank 500?
The SEA Super Full Tank 500 is intended for heavy swing-gate leaves, with catalogue maximums of 2,000 kg and 9 m per leaf. These limits must be considered alongside gate geometry, installation dimensions, and site conditions; professional assessment is required before selecting the system.
What power supply and stroke does the SEA Super Full Tank 500 use?
This model has a three-phase 230V supply and a 500 mm stroke. Its maximum opening angle is 120°, and it is compatible with the UNIGATE INVERTER control board.
Is the SEA Super Full Tank 500 a complete gate automation kit?
No. This listing is for the external Super Full Tank actuator, not a complete gate automation kit. Confirm the operator quantity, controller, electric lock, remotes, photocell, flashlight, safety accessories, installation scope, and supplied box contents before ordering.
