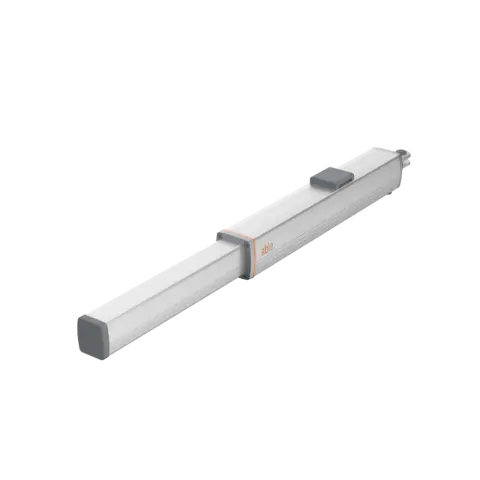

• Able HY-Series Hydraulic Swing Gate Operators, silver metal linear actuator with a telescoping arm and orange trim detail.

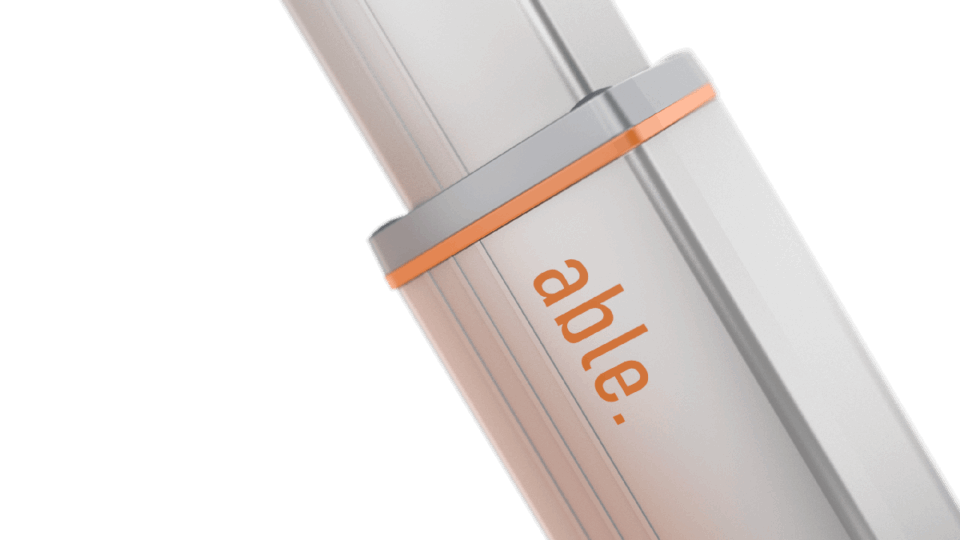

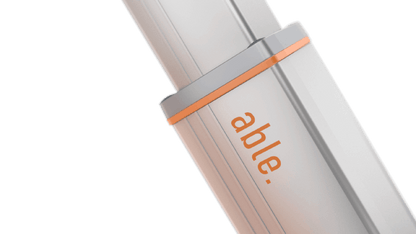

  • Able HY-Series Hydraulic Swing Gate Operators, silver metal hydraulic actuator with orange trim and Able branding

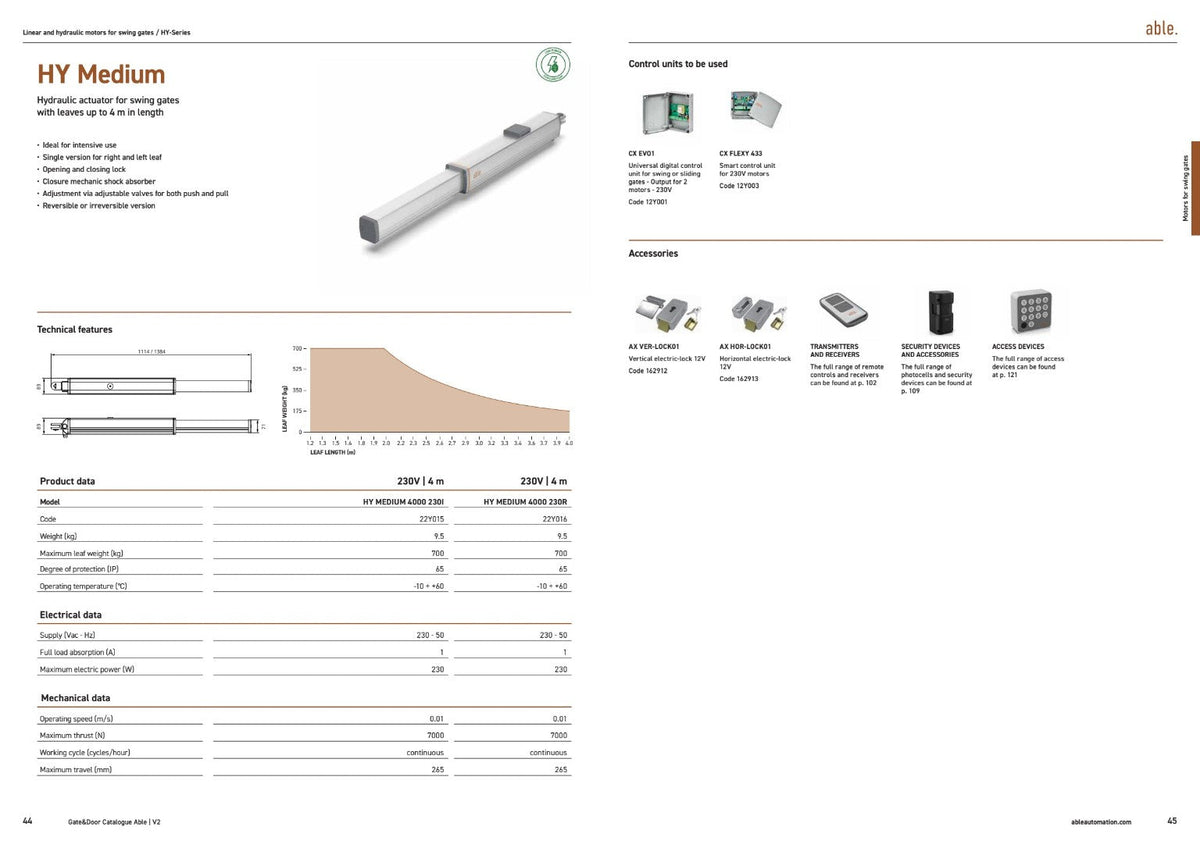

  • Able HY-Series Hydraulic Swing Gate Operators, silver hydraulic actuators with a smooth metal casing and technical specification charts

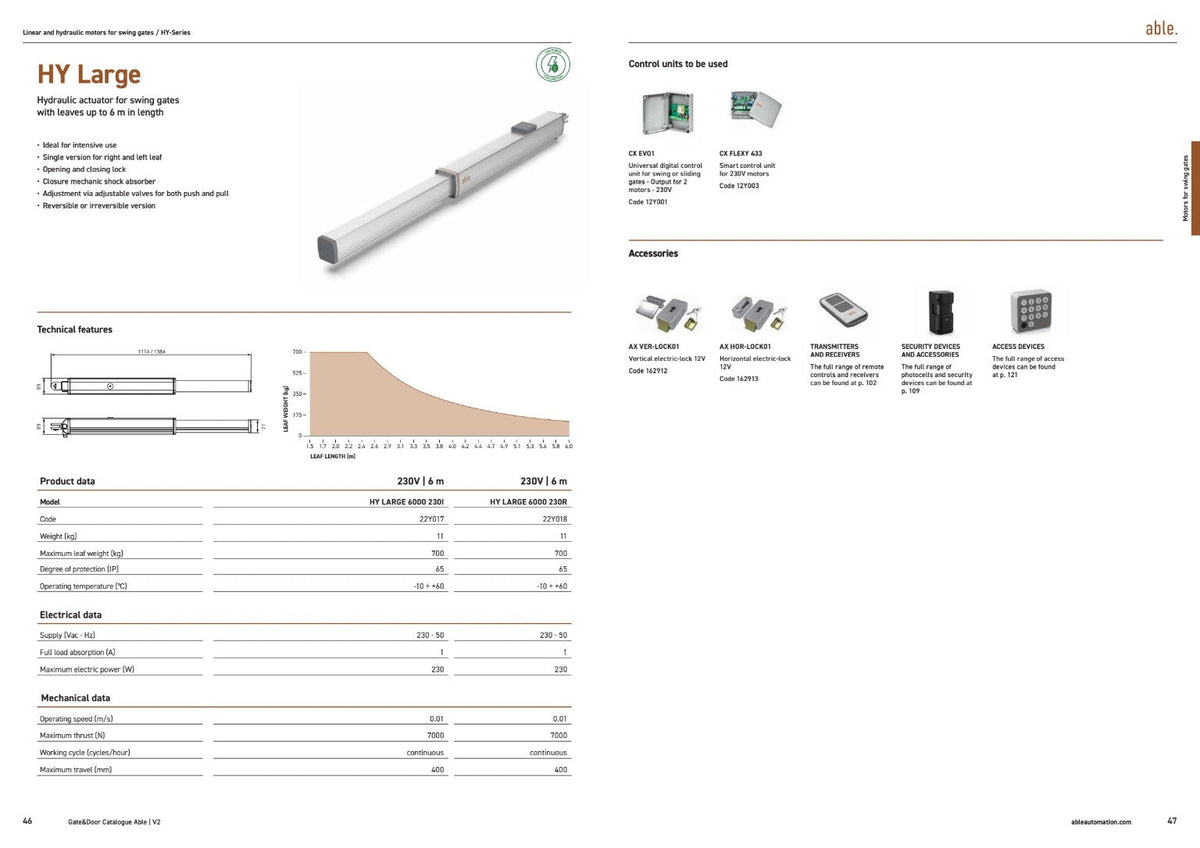

  • Product brochure for Able HY-Series Hydraulic Swing Gate Operators, white-and-grey linear actuator with technical diagrams, specifications and accessory images.
1 4

Able HY-Series Hydraulic Swing Gate Operators | Up to 6 m | Qatar

Able HY-Series Hydraulic Swing Gate Operators | Up to 6 m | Qatar

QAR 10.000,00
QAR 10.000,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Able HY-Series Hydraulic Swing Gate Operators in Qatar

The Able HY-Series is a 230V hydraulic actuator range for intensive-use swing gates. Available in HY Medium for gate leaves up to 4 m and HY Large for gate leaves up to 6 m, with reversible and irreversible versions. The hydraulic design provides continuous-duty operation, high thrust and strong environmental protection for demanding residential, commercial and industrial entrances.

Key Features

  • Hydraulic swing-gate actuator designed for intensive use
  • 230V AC, 50 Hz
  • Continuous working cycle
  • Maximum thrust: 7000 N
  • IP65 protection
  • Operating temperature: -10°C to +60°C
  • Opening and closing lock
  • Closure mechanic shock absorber
  • Adjustable valves for push and pull
  • Single operator version suitable for right or left gate leaf
  • Reversible and irreversible versions available

HY Medium – Up to 4 m

Models: HY MEDIUM 4000 230I / HY MEDIUM 4000 230R. Maximum leaf weight: 700 kg. Operator weight: 9.5 kg. Maximum travel: 265 mm. Operating speed: 0.01 m/s. Maximum electric power: 230 W. Full-load absorption: 1 A.

HY Large – Up to 6 m

Models: HY LARGE 6000 230I / HY LARGE 6000 230R. Maximum leaf weight: 700 kg. Operator weight: 11 kg. Maximum travel: 400 mm. Operating speed: 0.01 m/s. Maximum electric power: 230 W. Full-load absorption: 1 A.

Control & Safety Options

Compatible control solutions include Able CX EV01 and CX FLEXY 433. Recommended accessories include photocells, remote controls, access-control devices and electric locks where required by the gate configuration.

Professional Selection & Installation in Qatar

Comunello Qatar can select the correct HY operator according to gate-leaf length, actual gate weight, hinge geometry, wind exposure and expected traffic. For solid or privacy gates, wind loading must be assessed separately and the actuator should not be selected from leaf weight alone.

Request a Quote: Contact Comunello Qatar for technical selection, supply, professional installation and maintenance of Able hydraulic swing gate automation in Qatar.

Frequently asked questions

Which Able HY hydraulic operator is suitable for my swing gate?

HY Medium is designed for gate leaves up to 4 m, while HY Large covers leaves up to 6 m. Final selection must also consider actual gate weight, hinge geometry, opening requirements, wind exposure and usage.

Is the Able HY-Series suitable for intensive-use gates?

Yes. The verified HY-Series is a 230V hydraulic range designed for intensive-use applications with continuous-duty operation.

What is the maximum thrust of the Able HY-Series?

The verified HY Medium and HY Large models provide up to 7000 N maximum thrust.

What is the difference between reversible and irreversible HY models?

The HY range is available in reversible and irreversible versions. The appropriate configuration should be selected according to the gate application, locking requirements and control design.

Can an Able HY operator be used on a solid privacy gate?

Potentially, but solid gates can create substantial wind loads. Gate surface area, site exposure, leaf dimensions, hinge condition and operator capacity should be assessed before final selection.

Do you install Able hydraulic gate motors in Qatar?

Yes. Comunello Qatar provides technical selection, supply, professional installation, commissioning and maintenance for compatible Able HY-Series systems.

Hydraulic Operator Specification for Busy Entrances

Record peak operating periods, leaf construction, mounting dimensions and available electrical supply. Confirm the exact hydraulic version, holding and locking arrangement against manufacturer documentation. The quotation should identify any required electric lock, release arrangement and compatible controls.

Hydraulic Maintenance and Commissioning

Qualified servicing should follow the manufacturer's instructions and include assessment of seals, leaks, mountings, gate movement and protective devices. Force or hydraulic adjustments should form part of professional commissioning rather than compensate for worn hinges or poor alignment. An AMC can define inspection visits, service reporting and response arrangements.

Request Installation and Maintenance in Qatar

Request a quotation on WhatsApp. Explore swing gate automation, access control and maintenance and AMC.

View full details

Frequently Asked Questions

Which Able HY-Series Hydraulic Swing Gate Operator should I choose for my gate?
The HY Medium is designed for gate leaves up to 4 m, while the HY Large is designed for leaves up to 6 m. Selection should also account for actual gate weight, hinge geometry, wind exposure, opening requirements and expected traffic.
What are the maximum gate weight and thrust for the Able HY-Series?
Both HY Medium and HY Large models have a maximum leaf weight of 700 kg and a maximum thrust of 7000 N. For solid or privacy gates, the product information advises assessing wind loading separately rather than selecting an operator by leaf weight alone.
Are Able HY-Series Hydraulic Swing Gate Operators suitable for continuous use?
Yes. The 230V hydraulic actuator range is designed for intensive-use swing gates and has a continuous working cycle. The product specifies 230V AC at 50 Hz.
What is the difference between reversible and irreversible HY-Series models?
The range is available in reversible and irreversible versions. The suitable configuration depends on the gate application, locking requirements and control design, so confirm the choice during technical selection.
Which controls and accessories are compatible with the Able HY-Series?
Compatible control solutions include Able CX EV01 and CX FLEXY 433. Recommended accessories include photocells, remote controls, access-control devices and electric locks where required by the gate configuration.
