Able DC-Series Garage Door Operators | Up to 15 m² | Qatar
Able DC-Series Garage Door Operators | Up to 15 m² | Qatar

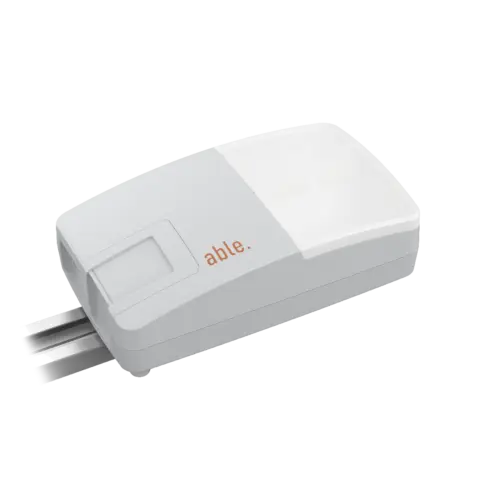

Able DC-Series garage door operators in Qatar are 24V electromechanical gearmotors for sectional and balanced garage doors. The range includes DC Small 700 for doors up to 10 m² and DC Medium 1000 for doors up to 15 m².
DC Small 700 24
- Maximum door area: 10 m²
- Maximum force: 700 N
- Supply: 230V AC, 50/60 Hz
- Maximum electric power: 192 W
- Opening speed: 14 cm/s
- Closing speed: 12 cm/s
- Working cycle: 30 cycles/hour
- IP20
- Operating temperature: -20°C to +40°C
- Weight: 6 kg

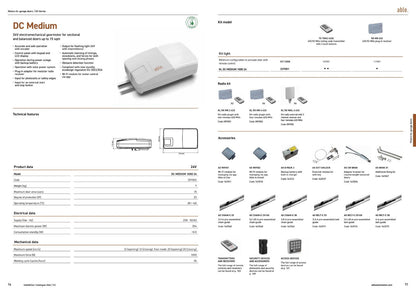

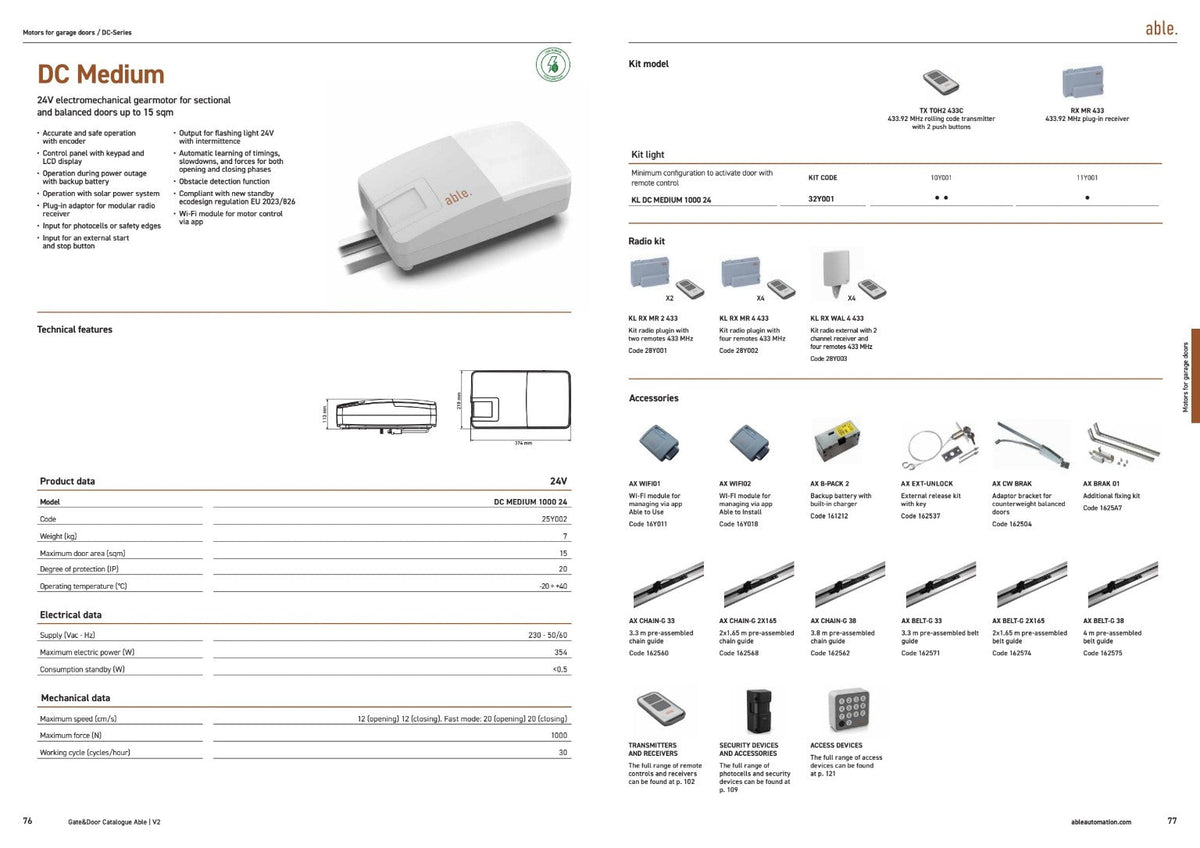

DC Medium 1000 24
- Maximum door area: 15 m²
- Maximum force: 1000 N
- Supply: 230V AC, 50/60 Hz
- Maximum electric power: 354 W
- Standard speed: 12 cm/s opening and closing
- Fast mode: 20 cm/s opening and closing
- Working cycle: 30 cycles/hour
- IP20
- Operating temperature: -20°C to +40°C
- Weight: 7 kg
Control and safety features
Both models provide encoder-based operation, a keypad/LCD control panel, backup-battery capability, solar-system operation, modular radio-receiver provision, photocell or safety-edge input, external start/stop input, 24V flashing-light output with intermittence, automatic learning of timings/slowdowns/forces, obstacle detection and optional Wi-Fi app control.
Accessories and installation
Compatible accessories include radio transmitters and receivers, Wi-Fi modules, backup battery, external release kit, adapter bracket for counterweight balanced doors, additional fixing kit, chain or belt guide rails, photocells, safety devices and access-control equipment.
Correct selection depends on door type, door area, balance, travel, headroom, rail configuration and installation conditions. Comunello Qatar can provide supply, installation, commissioning and maintenance.
Request a Quote on WhatsApp · Contact Comunello Qatar
Frequently asked questions
Which Able DC garage door operator should I choose?
DC Small 700 is specified for doors up to 10 m², while DC Medium 1000 covers doors up to 15 m². Door type, balance, travel, headroom and installation conditions must also be checked.
Can Able DC garage door operators use a backup battery?
Yes. The verified DC range supports backup-battery capability when configured with the appropriate compatible accessories.
Can I control an Able DC garage door from a phone?
The verified range supports optional Wi-Fi app control with the appropriate compatible module and configuration.
Do you install Able DC garage door operators in Qatar?
Yes. Comunello Qatar provides selection, supply, installation, commissioning and maintenance for compatible Able DC-Series systems.
Door Balance, Rail Space and Installation Environment
Provide door dimensions, mechanism photos, headroom and available rail space. Repair binding movement or damaged balancing components before adding an opener. Check the installation environment against the exact operator's temperature and protection ratings, especially in hot or exposed garages.
Quotation and Emergency Access
Confirm the motor model, rail length and type, brackets, remotes, safety accessories and electrical work in writing. If the garage has no alternative entrance, discuss an external release arrangement. Commissioning should include safety-function testing and a manual-release demonstration.
Garage Door Maintenance
Ask about inspections of door movement, rail and fixing security, controls and safety devices. Counterbalance repairs should be handled by qualified technicians. An AMC should define visits and parts coverage.
