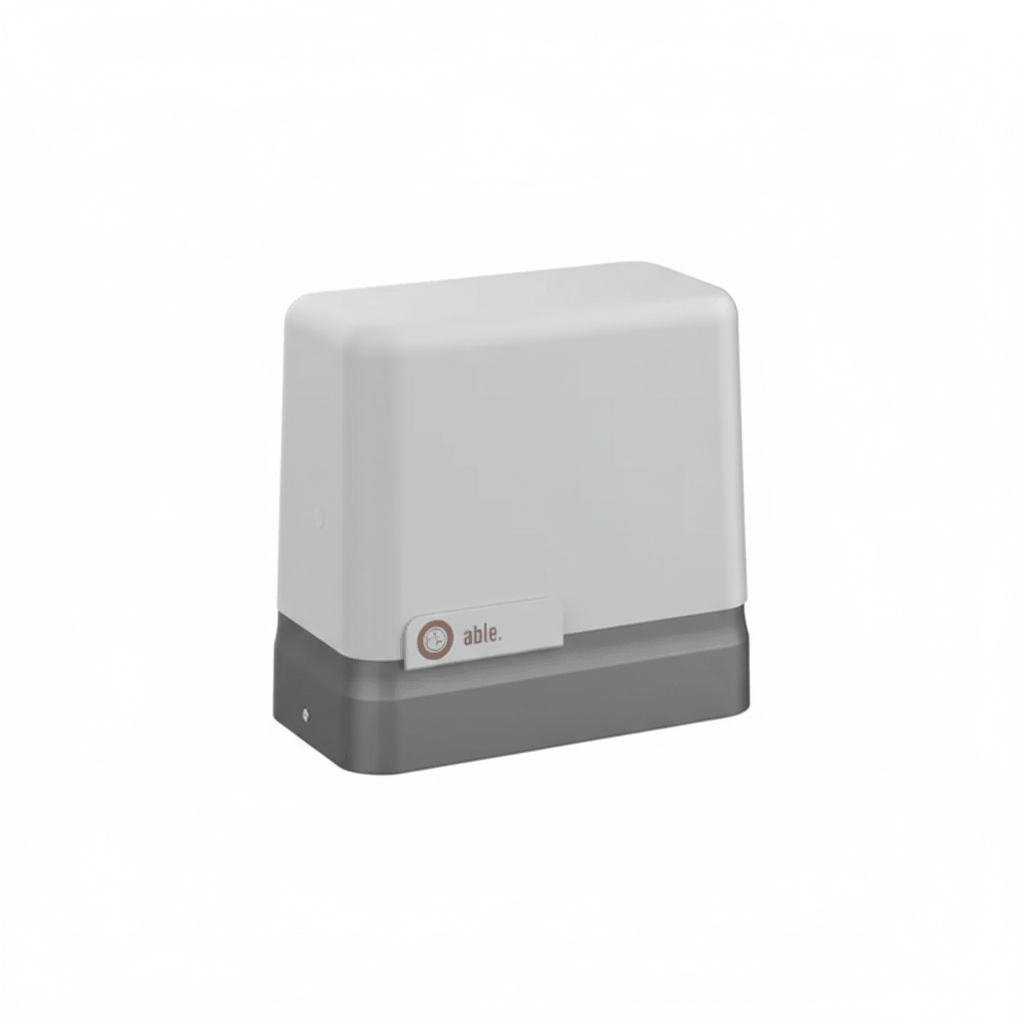

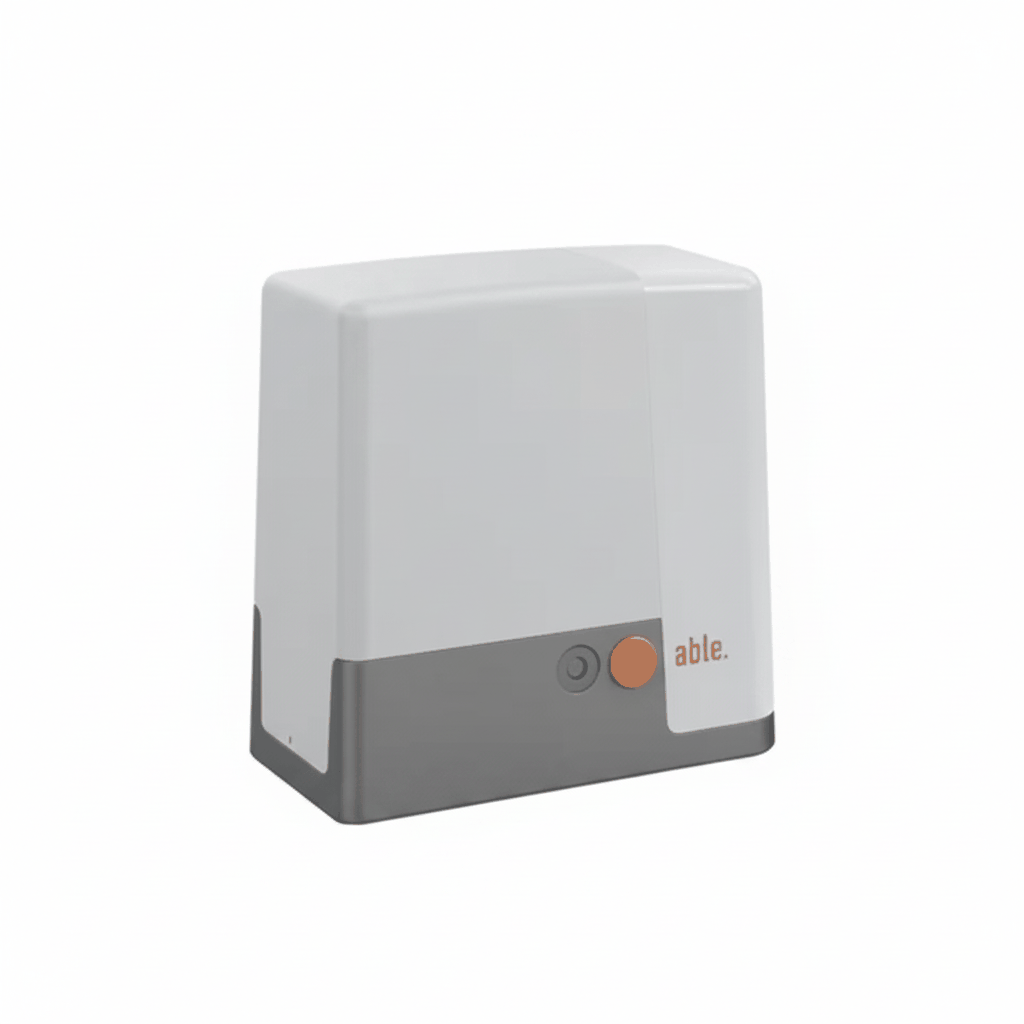

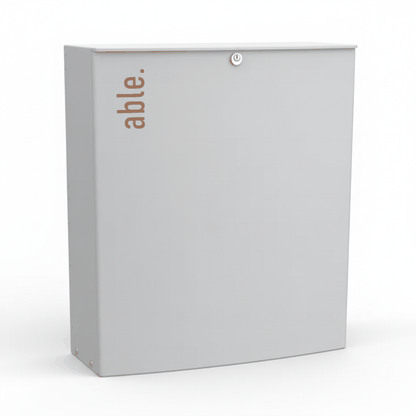

Able SL-Series sliding gate motors in Qatar are irreversible electromechanical rack operators for residential, commercial and industrial sliding gates. The manufacturer range covers gates from 400 kg up to 4000 kg.

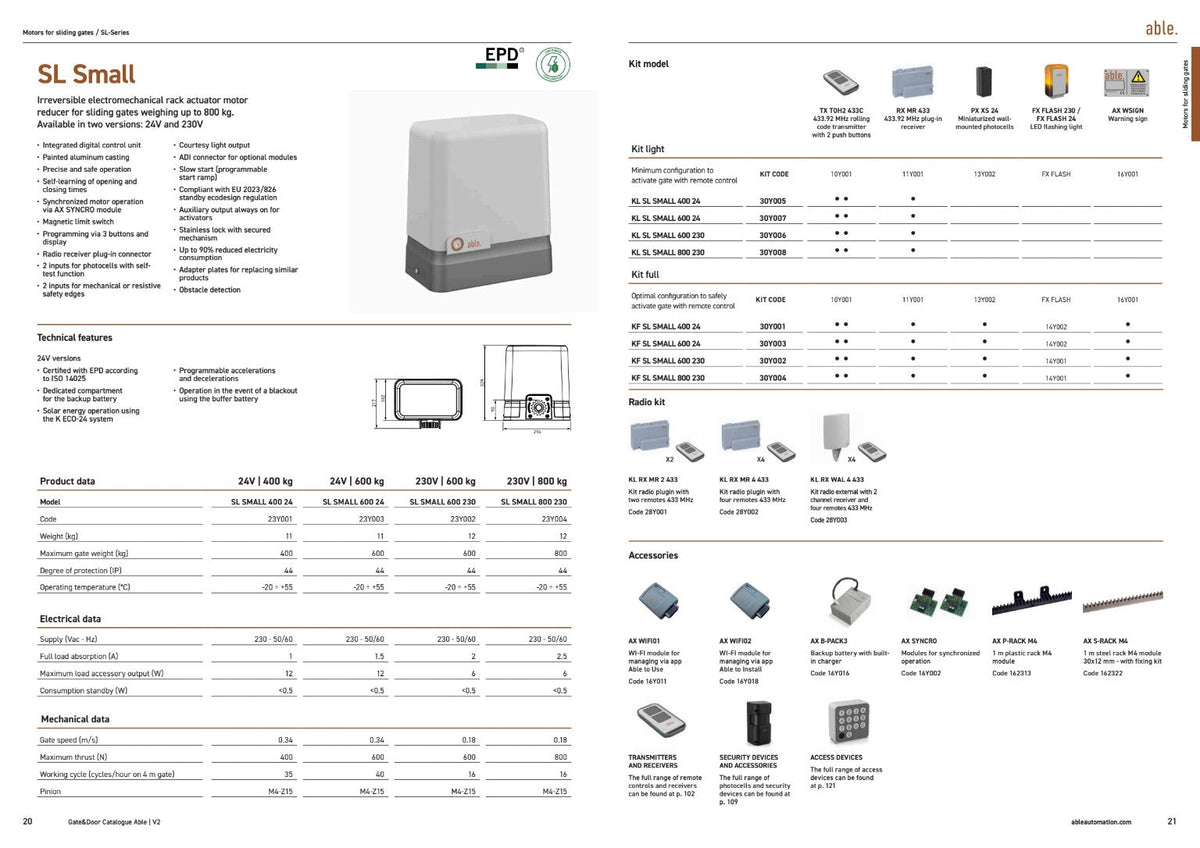

SL Small
Models cover 400 kg and 600 kg in 24V versions, plus 600 kg and 800 kg in 230V versions. All are IP44 and rated for -20°C to +55°C. The 230V 800 kg model provides 800 N maximum thrust and 0.18 m/s gate speed.

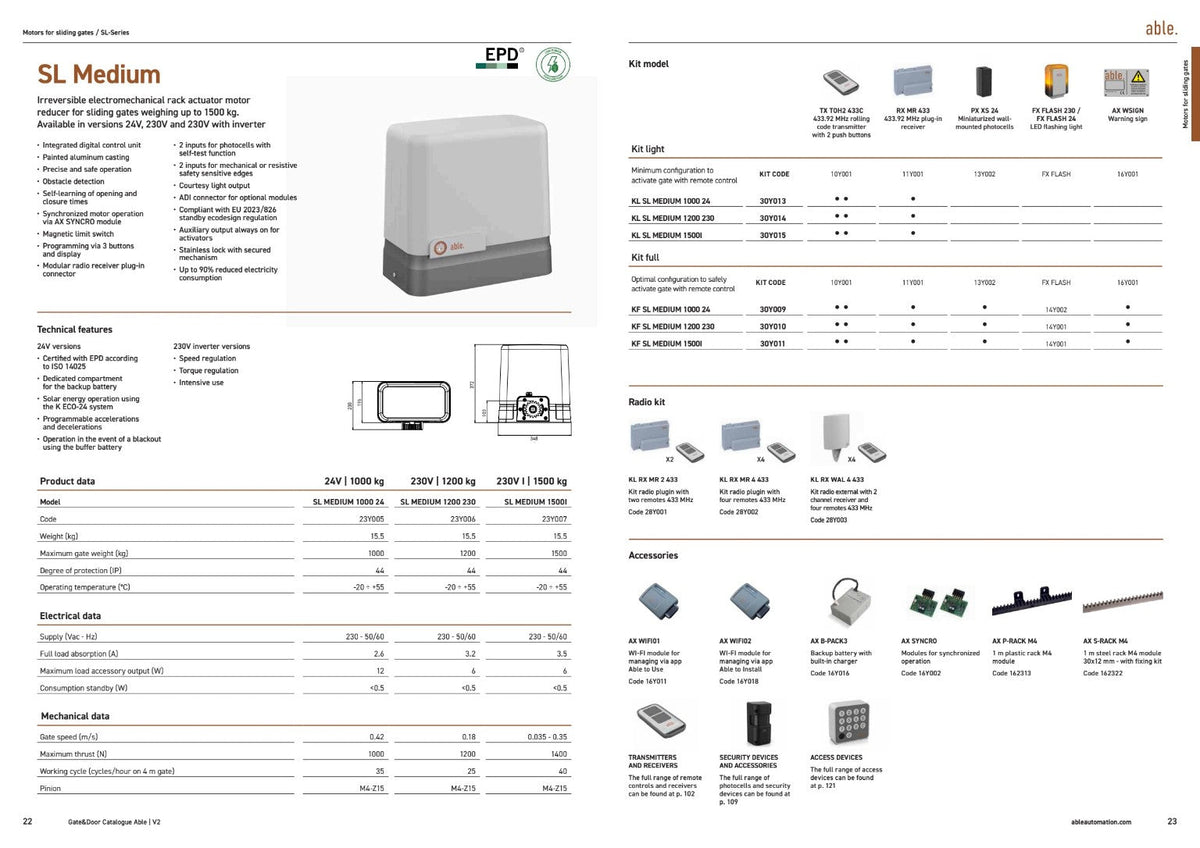

SL Medium
The range includes SL Medium 1000 24, SL Medium 1200 230 and SL Medium 1500I. Maximum gate weights are 1000, 1200 and 1500 kg respectively. The 1500I inverter version provides adjustable speed from 0.035 to 0.35 m/s, up to 1400 N thrust and intensive-use capability.

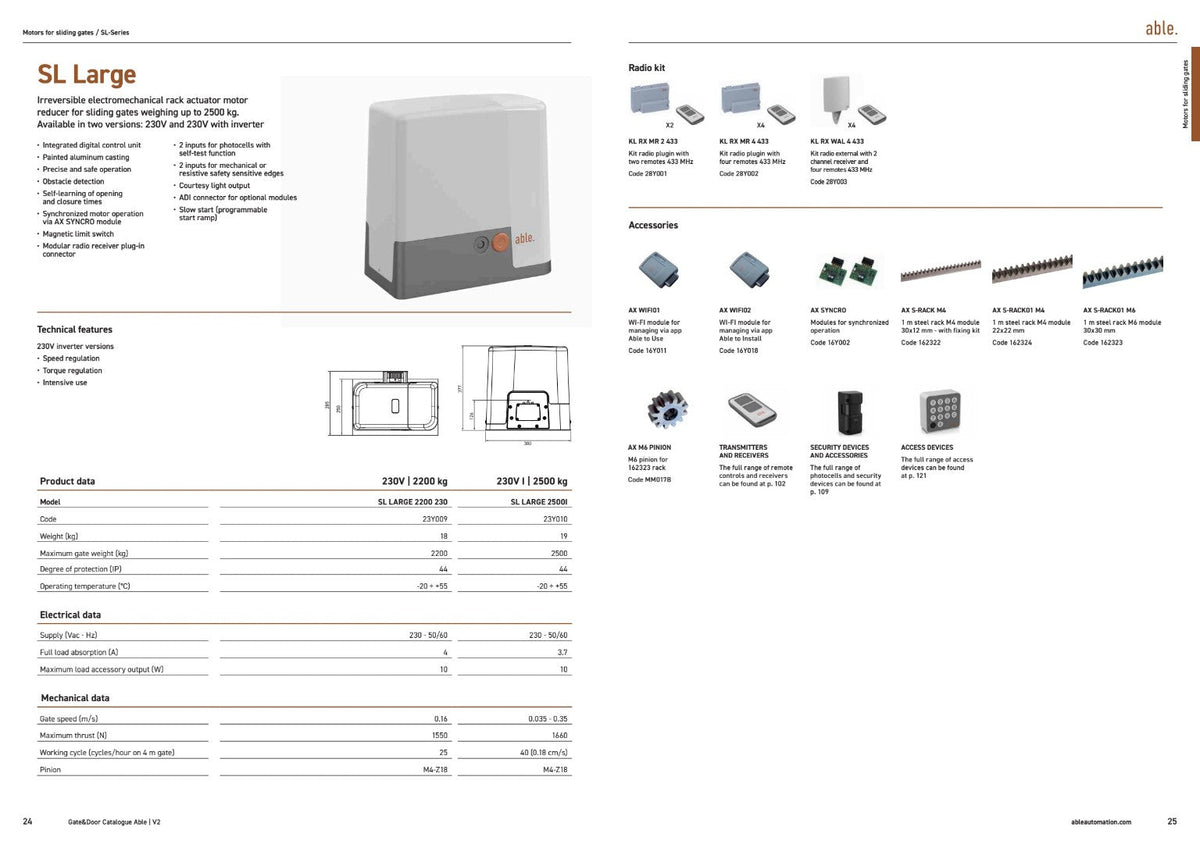

SL Large
SL Large is available for gates up to 2200 kg and 2500 kg. The 2500I inverter version provides adjustable speed from 0.035 to 0.35 m/s, maximum thrust of 1660 N and intensive-use operation. Both models are IP44 and operate from -20°C to +55°C.

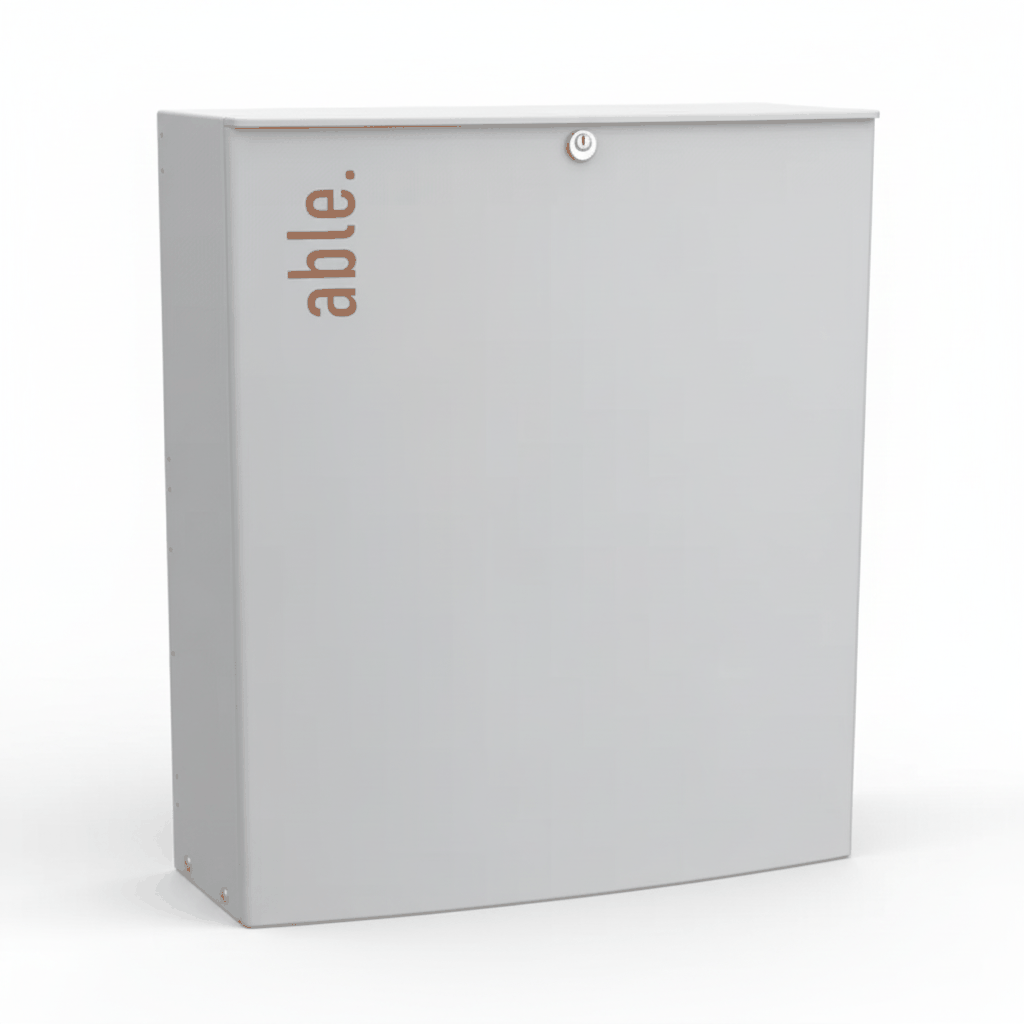

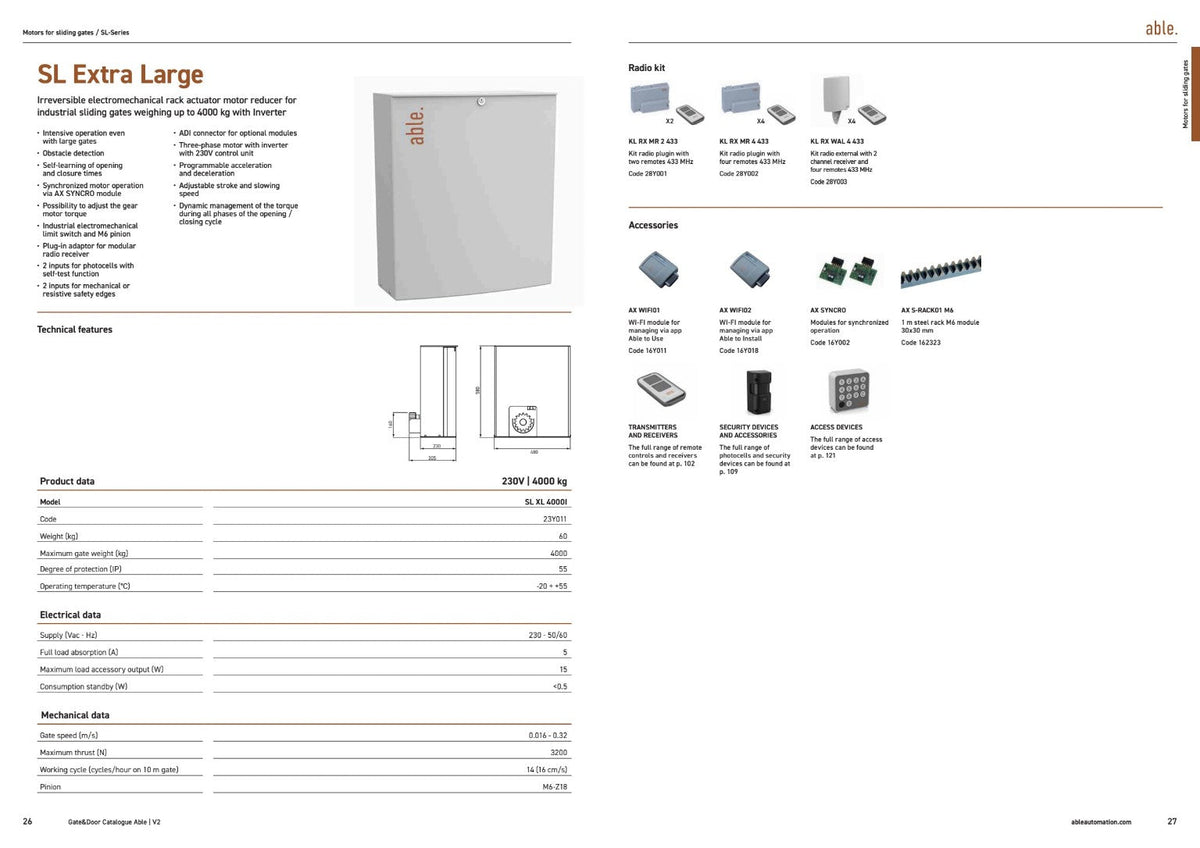

SL Extra Large 4000
The SL XL 4000 is designed for industrial sliding gates up to 4000 kg. It uses a three-phase motor with inverter on a 230V 50/60 Hz supply, offers adjustable gate speed from 0.016 to 0.32 m/s, maximum thrust of 3200 N, IP55 protection and an operating range of -20°C to +55°C.
Control, safety and accessories
Depending on model, features include integrated digital control, obstacle detection, self-learning opening/closing times, magnetic limit switch, photocell self-test inputs, mechanical or resistive safety-edge inputs, modular radio receiver connection, synchronized motor operation, Wi-Fi modules and access-control integration. Rack options include M4 and M6 configurations according to the selected operator.
Sliding gate automation in Qatar
Correct motor selection depends on actual gate weight, gate length, rolling resistance, usage frequency, rack and pinion configuration, site conditions and required safety devices. Comunello Qatar can provide selection, supply, installation, commissioning and maintenance.
Request a Quote on WhatsApp · Contact Comunello Qatar
Frequently asked questions
Which Able SL motor is suitable for my sliding gate?
Selection depends on actual gate weight, gate length, rolling resistance, usage frequency and site conditions. The SL range covers residential through industrial gates from 400 kg up to 4000 kg.
Can Able SL motors be used for industrial gates?
Yes. The range includes high-capacity and inverter-controlled models for demanding sliding-gate applications, subject to correct engineering selection.
What should be checked before replacing an existing sliding gate motor?
Check the gate track and wheels, rack position, motor foundation, electrical supply, travel limits, safety devices and the gate's manual movement before selecting the replacement operator.
Do you install Able SL-Series motors in Qatar?
Yes. Comunello Qatar provides selection, supply, installation, commissioning and maintenance for compatible Able SL-Series systems.
Comparing SL Models for Your Entrance
Compare the exact model's load and duty information against gate condition and peak usage. Maximum weight alone does not establish suitability. Provide the track, wheel and rack arrangement, available power and photographs of the existing foundation.
Installation and Maintenance Scope
Request an itemised quotation for the operator, rack, controls, protective devices, cabling, foundation work and commissioning. An AMC can cover running gear, fixings, safety testing and release operation according to manufacturer instructions.
