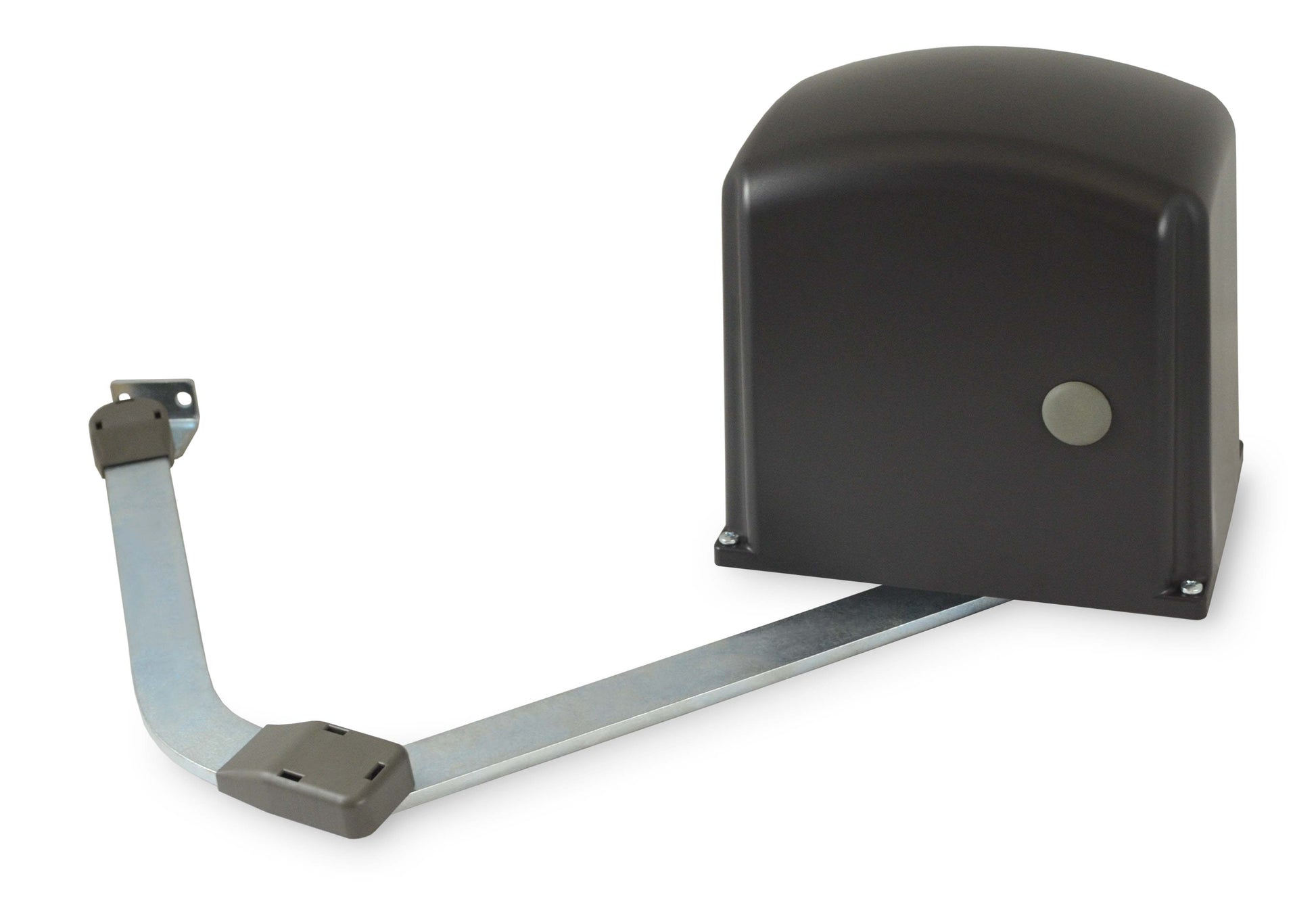

Proteco ADVANTAGE Articulated Swing Gate Operator

Proteco ADVANTAGE Articulated Swing Gate Operator

QAR 6.500,00
QAR 6.500,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Proteco ADVANTAGE uses an articulated swing-gate arrangement. It is worth assessing where the pillar geometry makes a straight actuator difficult to position, while checking that the moving arm has enough clearance inside the entrance.

Confirmed product details

  • Articulated-arm drive for swing gates.
  • Maximum gate leaf length: 2.0 m; this is leaf length, not gate height.
  • Manufacturer variants include 230V and 24V; confirm the supplied version and its weight limit.

ADVANTAGE: allow space for the articulated arm

Show walls, fences and obstacles behind the open leaf. The arm must remain clear throughout movement, and its joints introduce areas that need consideration in the safety assessment. Confirm the exact operator version and fixing dimensions with the manual.

Price and supply scope

Price on request. Request a written quotation confirming the exact model, included equipment, availability and installation scope.

Request a quotation

Request a quote on WhatsApp · Contact Comunello Qatar

Manufacturer documentation

Frequently asked questions

What clearance does the ADVANTAGE arm need?

The requirement depends on the mounting geometry and intended opening angle. Send an overhead sketch with pillar and wall dimensions so the arm sweep can be checked before installation.

How do I confirm the supplied Proteco ADVANTAGE Articulated Swing Gate Operator configuration?

Use the product details and manufacturer documents above when reviewing the offer. The quotation must identify the selected model or variant and list included equipment and installation work.

What should I send with my Proteco ADVANTAGE Articulated Swing Gate Operator enquiry?

It is worth assessing where the pillar geometry makes a straight actuator difficult to position, while checking that the moving arm has enough clearance inside the entrance. Include your Qatar site location and say whether you need equipment supply, installation or a replacement assessment.

Choosing ADVANTAGE for Your Entrance

Photograph the pillar and hinge from above, and show the leaf fully open. Assess the arm's entire sweep for walls, fences and stored items. Available mounting space and safe clearance matter alongside leaf dimensions and operating frequency.

Installation and Safety Assessment

The installer should confirm bracket positions, mounting strength, stops, electrical supply and control configuration against the selected operator manual. Assess pinch points around the arm joints and gate, then specify suitable protective measures. Test installed safety functions during commissioning.

Which version should I order?

Confirm the exact voltage, operator code, control panel and required accessories in the written quotation. Different versions should not be assumed interchangeable with existing wiring or controls.

Aftercare for Articulated Gate Motors

Request maintenance checks of arm joints, bracket security, gate hinges, safety devices and manual release in accordance with manufacturer instructions. Compatible access upgrades and AMC coverage can be quoted after assessment.

Manufacturer Technical Reference: ADVANTAGE

Specification 230V version 24V version
Motor power 300 W 50 W
Maximum torque 280 Nm 200 Nm
Maximum leaf weight 250 kg 200 kg
Maximum leaf length 2.0 m 2.0 m
Protection IP44 IP44
90° opening time 18 seconds 14 seconds

Proteco lists a maximum opening angle of 130°. Actual suitability and angle depend on mounting geometry, gate condition and model selection. The 230V version uses a 10 µF capacitor. Confirm supplied controls and accessories in the quotation. Official Proteco ADVANTAGE technical data.

Related services

Swing gate automation in Qatar · Preventive maintenance and AMC · Gate repair

View full details

Frequently Asked Questions

What type of gate is the Proteco ADVANTAGE Articulated Swing Gate Operator designed for?
The Proteco ADVANTAGE uses an articulated-arm drive for swing gates. Its arrangement may be worth assessing where pillar geometry makes a straight actuator difficult to position, provided the arm has enough clearance inside the entrance.
What is the maximum gate leaf length for the Proteco ADVANTAGE?
The maximum gate leaf length is 2.0 m. This specification refers to the leaf length, not the gate height.
How do the 230V and 24V Proteco ADVANTAGE versions differ?
Manufacturer variants include 230V and 24V. The listed maximum leaf weights are 250 kg for the 230V version and 200 kg for the 24V version; confirm the supplied version and its weight limit in the quotation.
How much clearance does the articulated arm need during operation?
The arm must remain clear throughout its movement, including when the gate leaf is open. Check for walls, fences and other obstacles behind the open leaf, and use the manual to confirm the exact operator version and fixing dimensions.
What should I confirm before buying the Proteco ADVANTAGE Articulated Swing Gate Operator?
Request a written quotation that identifies the exact model or variant, included equipment, availability and installation scope. Confirm compatibility with your gate and mounting geometry, as well as the voltage, control panel and required accessories.
