Able LN-Series Linear Swing Gate Motors in Qatar

The Able LN-Series consists of irreversible electromechanical linear actuators for swing gates, with listed options for leaves up to 3 m and 6 m. The range includes 24V and 230V configurations depending on model.

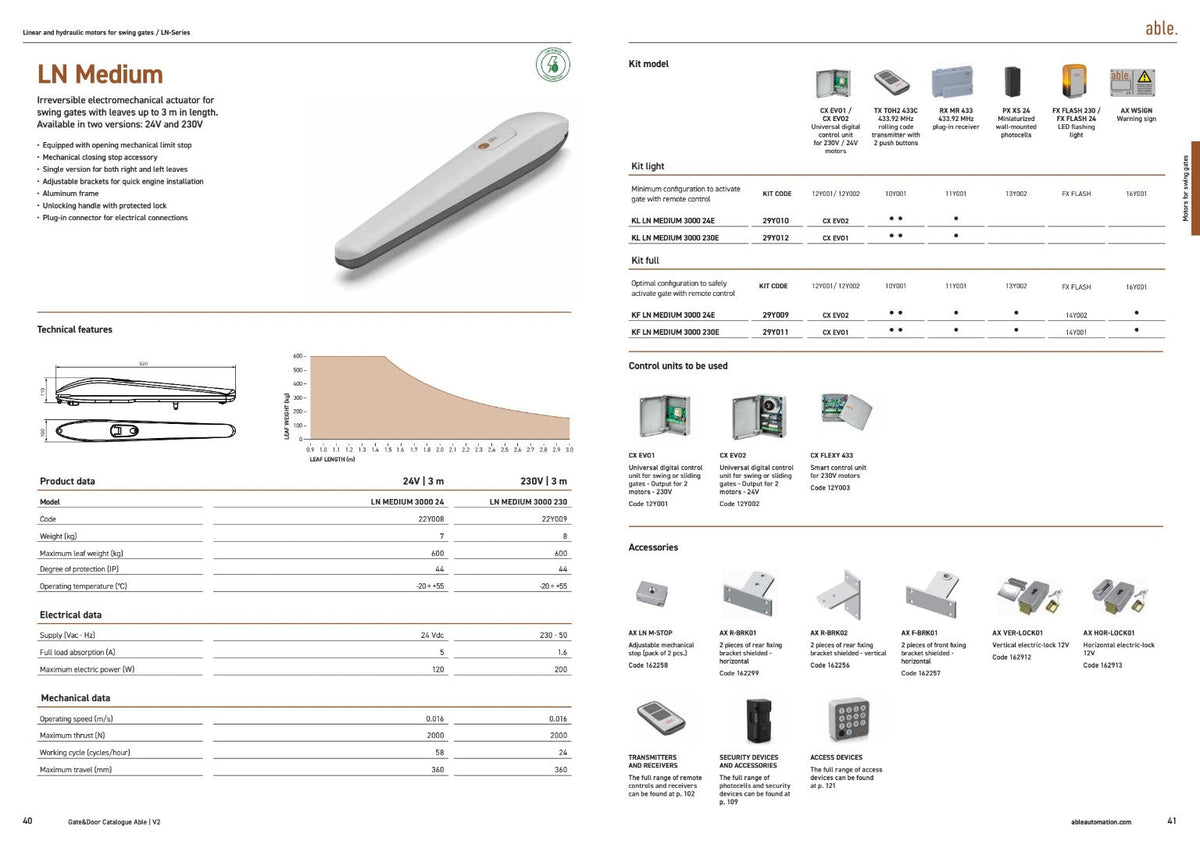

LN Medium 3000

Available in 24V and 230V versions for leaves up to 3 m and maximum leaf weight of 600 kg.

  • 24V: 120 W, 5 A, 2000 N, 58 cycles/hour
  • 230V: 200 W, 1.6 A, 2000 N, 24 cycles/hour
  • IP44; -20°C to +55°C
  • Speed: 0.016 m/s; travel: 360 mm

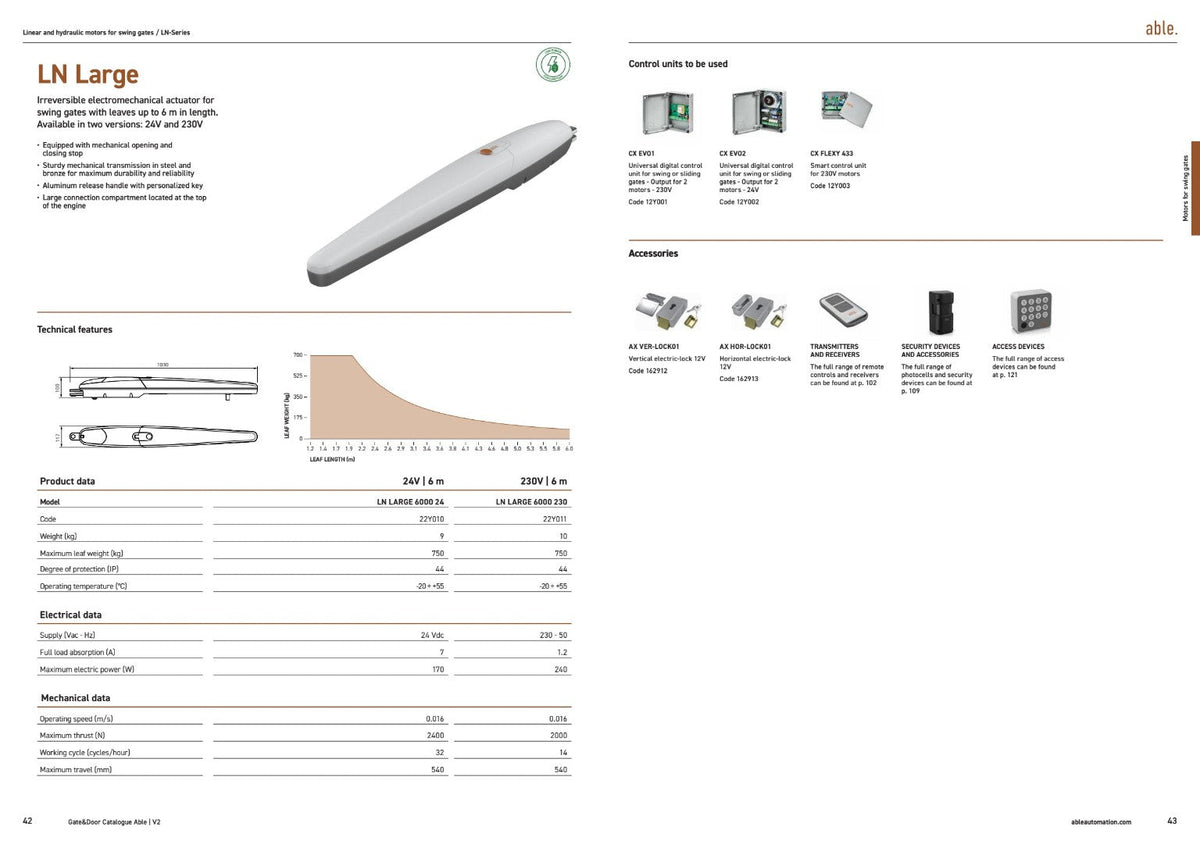

LN Large 6000

Available in 24V and 230V versions for leaves up to 6 m and maximum leaf weight of 750 kg.

  • 24V: 170 W, 7 A, 2400 N, 32 cycles/hour
  • 230V: 240 W, 1.2 A, 2000 N, 14 cycles/hour
  • IP44; -20°C to +55°C
  • Speed: 0.016 m/s; travel: 540 mm

Features and accessories

Depending on model, features include mechanical opening/closing stops, adjustable fixing brackets, aluminium construction, manual release and dedicated electrical connection compartments. Compatible control solutions include CX EV01, CX EV02 and CX FLEXY 433, with electric locks, transmitters, photocells, safety and access-control devices available.

Professional selection

Gate leaf length and weight must be evaluated together using the Able selection charts. Hinge geometry, gate construction, usage frequency and wind loading must also be considered, particularly for solid or privacy gates in Qatar.

Request a Quote on WhatsApp · Contact Comunello Qatar

Frequently asked questions

Which Able LN-Series motor is suitable for my swing gate?

The listed LN options cover gate leaves up to 3 m and 6 m. Final selection depends on leaf length, actual weight, hinge geometry, installation dimensions, usage frequency and wind exposure.

What is the difference between LN Medium and Large?

LN Medium for leaves up to 3 m and LN Large for leaves up to 6 m, subject to the manufacturer's corresponding leaf-weight limits and selection criteria.

Are Able LN motors available in 24V and 230V?

Yes. The verified range includes 24V and 230V configurations depending on the model. The correct voltage and control unit should be selected for the required application and duty cycle.

Can Able LN automate a solid or privacy swing gate?

Potentially, but wind loading can be significant on solid gates. Gate surface area, location, leaf dimensions, hinge condition and operator capacity should be assessed before selection.

Do you install Able LN-Series motors in Qatar?

Yes. Comunello Qatar provides technical selection, supply, professional installation, commissioning and maintenance for compatible Able LN-Series swing gate systems.

Linear Actuator Mounting and Replacement

Photograph the hinge axis, pillar and leaf bracket with the gate open and closed. The mounting distances and required opening angle must match the exact LN operator's instructions. For replacements, identify the existing model and controls before deciding whether brackets or wiring can be retained.

Quotation Scope and Aftercare

Confirm operator quantity, model and voltage, brackets, controls, protective devices, stops and installation work in the quotation. Ask about maintenance of hinges, fixings, gate movement and release operation, and compatible access-control upgrades.

Request Installation and Maintenance in Qatar

Request a quotation on WhatsApp. Explore swing gate automation, access control and maintenance and AMC.

View full details

Frequently Asked Questions

Which Able LN-Series Linear Swing Gate Motor should I choose for a 3 m or 6 m gate leaf?
The LN Medium 3000 is listed for leaves up to 3 m, with a maximum leaf weight of 600 kg. The LN Large 6000 is listed for leaves up to 6 m, with a maximum leaf weight of 750 kg. Final selection should consider leaf length and weight together, as well as hinge geometry, gate construction, usage frequency and wind loading.
Are Able LN-Series Linear Swing Gate Motors available in 24V and 230V?
Yes. Both the LN Medium 3000 and LN Large 6000 are listed in 24V and 230V configurations. Their power, current and cycles per hour differ by model and voltage, so check the specifications and required duty cycle when selecting a configuration.
What are the speed and travel specifications of the LN Medium and LN Large?
Both models are listed at a speed of 0.016 m/s. The LN Medium 3000 has 360 mm of travel, while the LN Large 6000 has 540 mm of travel.
What features and control options can be used with an Able LN-Series motor?
Depending on the model, features include mechanical opening and closing stops, adjustable fixing brackets, aluminium construction, manual release and dedicated electrical connection compartments. Compatible control solutions include CX EV01, CX EV02 and CX FLEXY 433; electric locks, transmitters, photocells, safety devices and access-control devices are also listed as available.
What should be checked before installing an Able LN-Series motor on a solid or privacy gate?
The product information notes that wind loading should be considered carefully, particularly for solid or privacy gates in Qatar. Selection should also account for leaf length and weight, hinge geometry, gate construction and usage frequency; mounting distances and the required opening angle must match the exact operator's instructions.
