Able DR-Series Rolling Shutter Motors | 170–600 kg | Qatar

Able DR-Series Rolling Shutter Motors | 170–600 kg | Qatar

QAR 3.000,00
QAR 3.000,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product overview

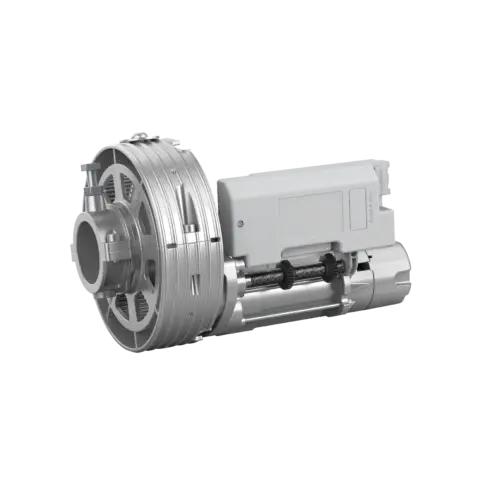

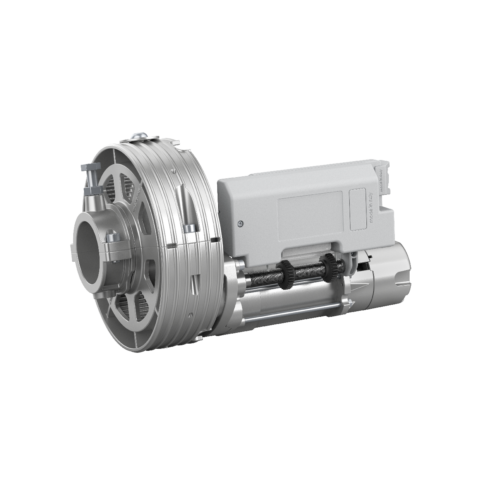

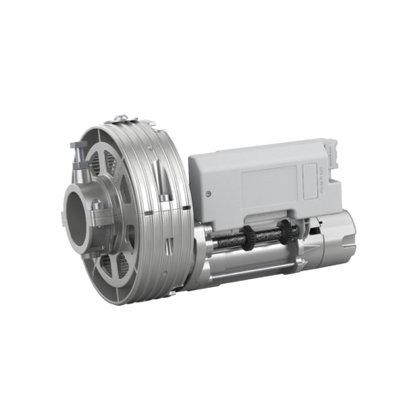

Able DR-Series Rolling Shutter Motors are 230V irreversible electromechanical operators for rolling shutters. The range covers shutter weights from 170 kg to 600 kg, with electro-brake versions available across the listed models. The aluminium housing is the specified construction material. These motors are available in Qatar.

Models and specifications

  • DR Small 170 230: supports shutters up to 170 kg; no electro-brake.
  • DR Small 170B 230: supports shutters up to 170 kg; includes an electro-brake.
  • DR Medium 260B 230: supports shutters up to 260 kg; includes an electro-brake.
  • DR Medium 380B 230: supports shutters up to 380 kg; includes an electro-brake and uses two motors.

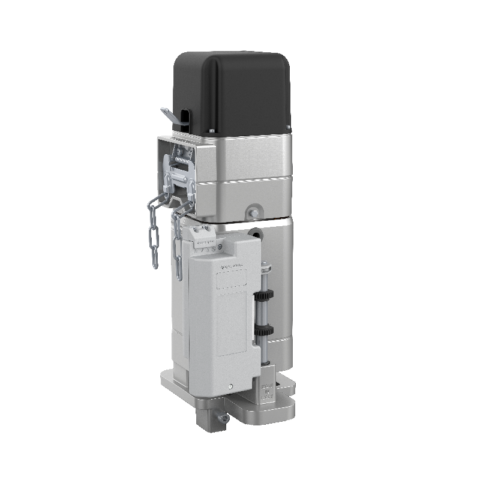

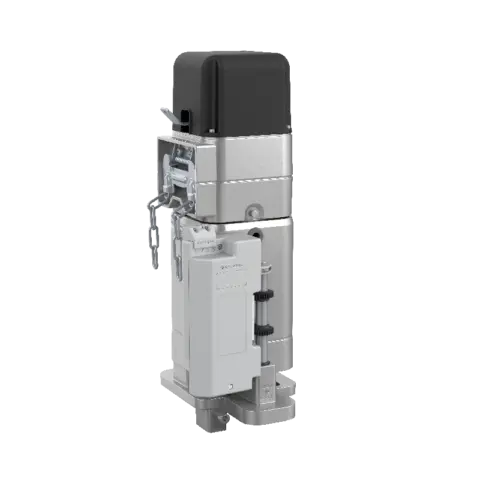

  • DR Large 600B 230: supports shutters up to 600 kg; includes an electro-brake.

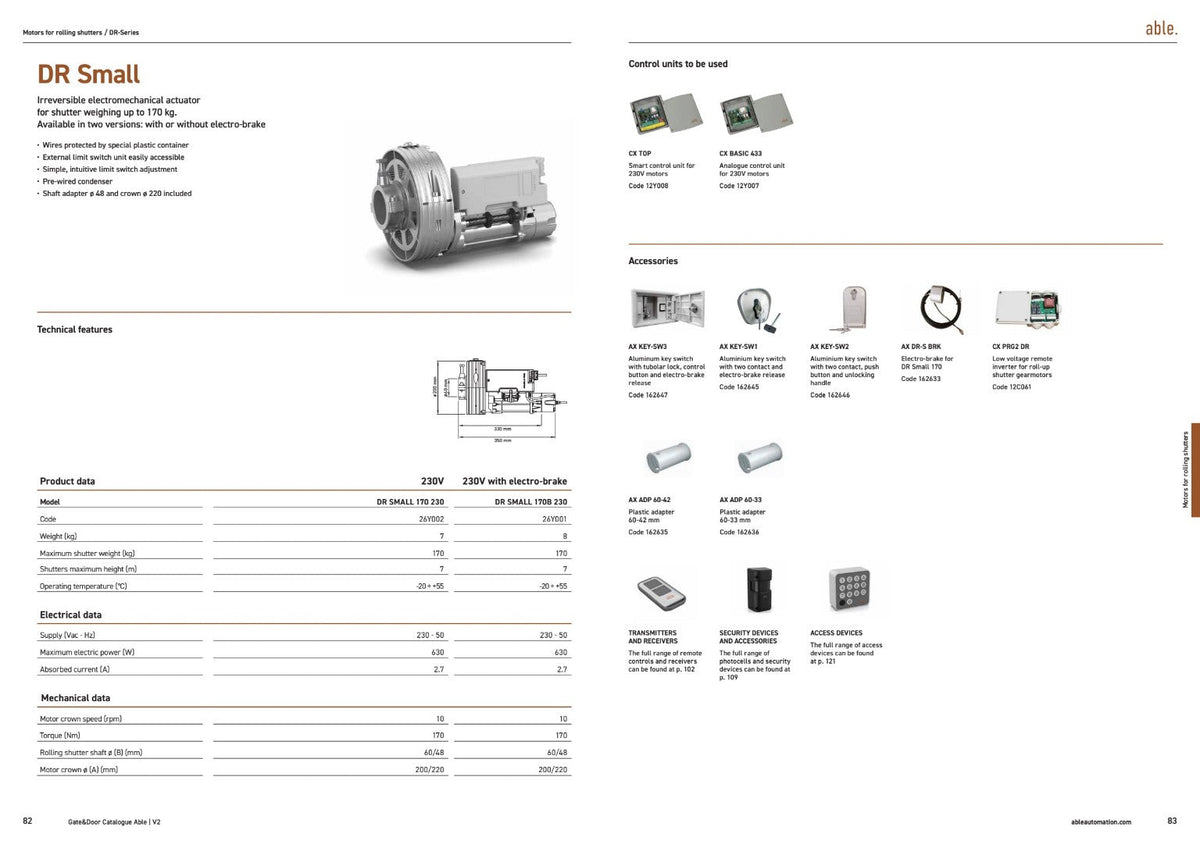

  • The DR Small 170 and 170B support a maximum shutter height of 7 m and operate at 230V, 50 Hz, with 630 W maximum power, 2.7 A absorbed current, 10 rpm crown speed and 170 Nm torque.

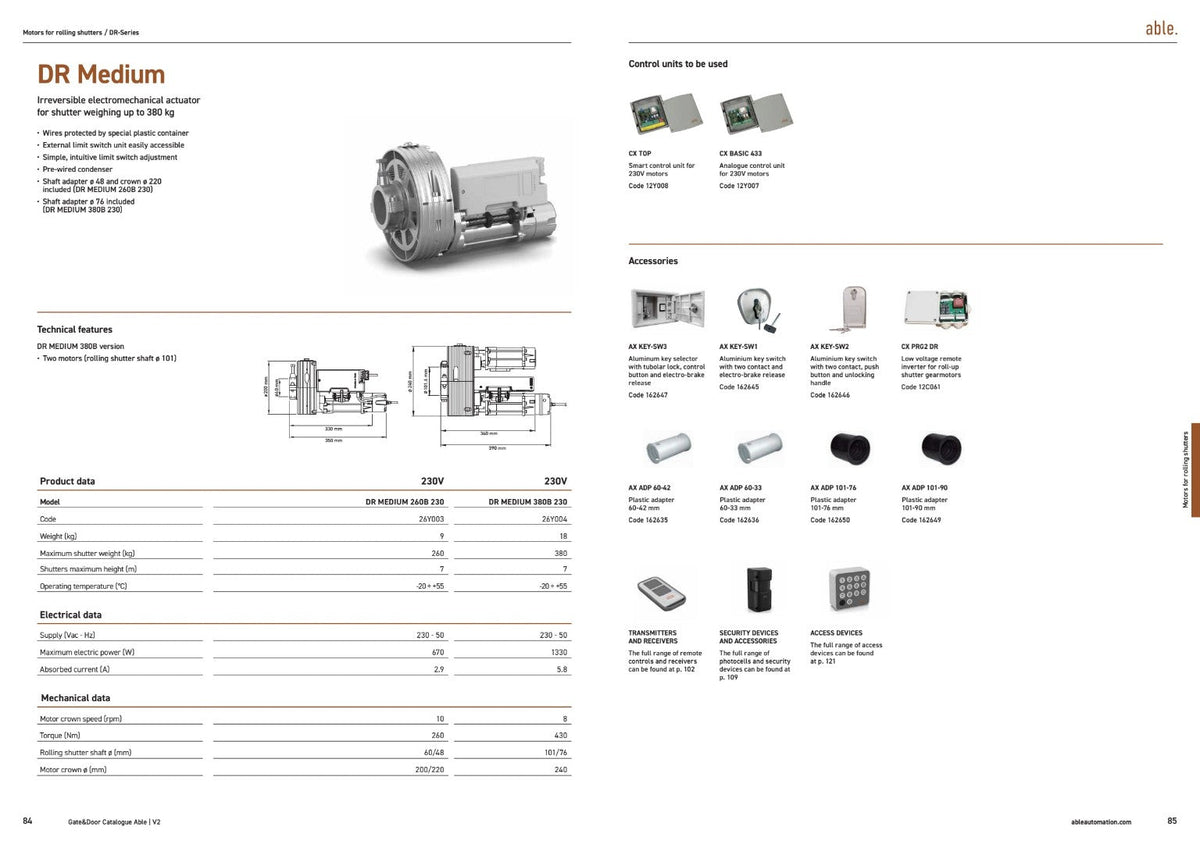

  • The DR Medium 260B supports a maximum height of 7 m and specifies 230V, 50 Hz, 670 W maximum power, 2.9 A, 10 rpm and 260 Nm torque.
  • The DR Medium 380B supports a maximum height of 7 m and specifies 230V, 50 Hz, 1,330 W maximum power, 5.8 A, 8 rpm and 430 Nm torque. The listed models operate from -20°C to +55°C.

Use cases and selection

The range is for automating rolling shutters, with model capacities for shutters weighing up to 170 kg, 260 kg, 380 kg or 600 kg. It is suited to shoppers choosing a replacement or new shutter operator in Qatar who need to compare capacity and electro-brake configuration. Selection should account for actual shutter weight and height, shaft and crown dimensions, balance, operating frequency and required safety devices. For a replacement assessment, provide shutter width and height, approximate curtain weight, shaft and crown dimensions, existing motor label and expected daily use. Report dragging guides, damaged slats or balancing faults before selecting a motor.

Controls, accessories and service

Compatible control units include CX TOP and CX BASIC 433. Available accessories include key switches, electro-brake components, a low-voltage remote interface, shaft adapters, transmitters, receivers, photocells, security devices and access-control equipment. Comunello Qatar provides selection, supply, installation, commissioning and maintenance for compatible Able DR-Series systems. Confirm the operator, adapters, brake configuration, control equipment, protective devices and electrical work in the quotation.

Care

Maintenance can include checks of guide condition, fixings, limits, controls and protective devices according to manufacturer instructions. Warranty details and box contents are not specified.

View full details

Frequently Asked Questions

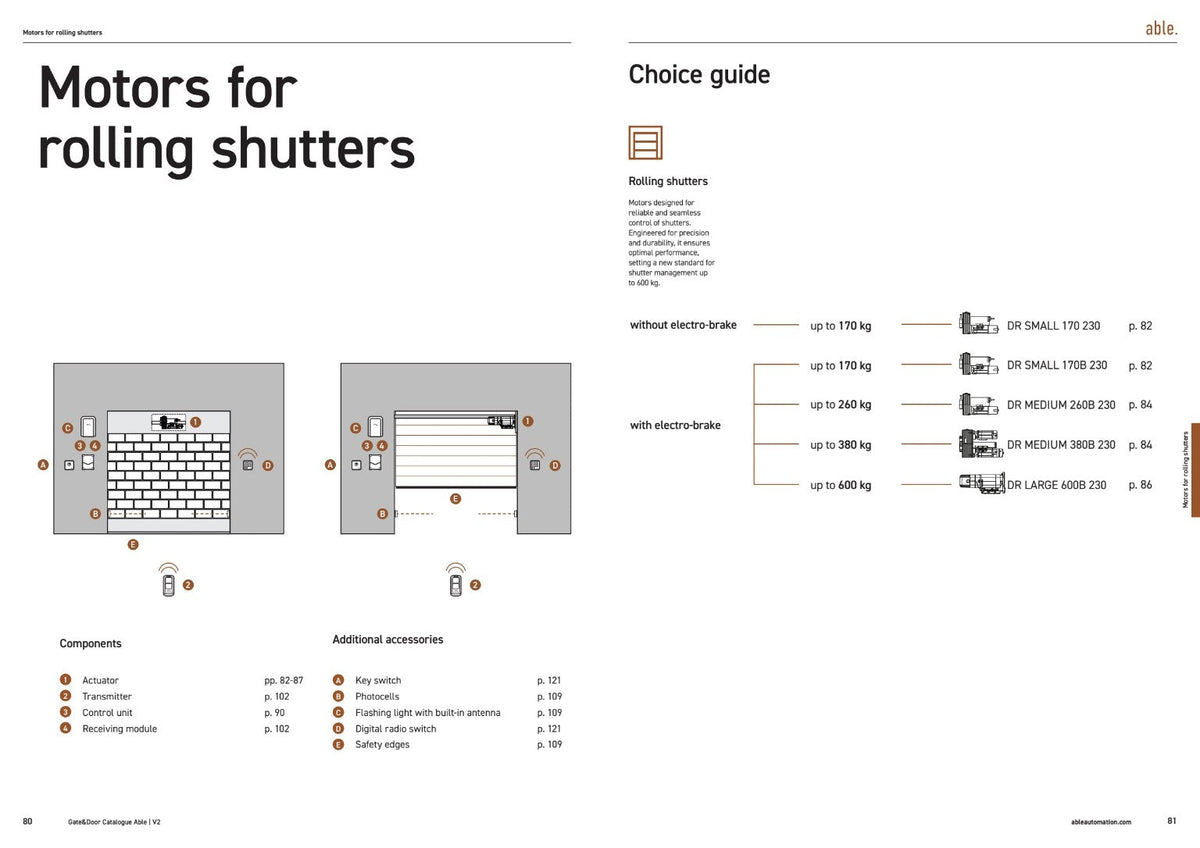

Which Able DR-Series Rolling Shutter Motor should I choose for my shutter weight?
The range covers shutters from up to 170 kg through to up to 600 kg. Available options include DR Small 170 and 170B, DR Medium 260B and 380B, and DR Large 600B; selection should also account for shutter height, shaft and crown dimensions, balance, and operating frequency.
What is the difference between the DR Small 170 and DR Small 170B?
Both Able DR-Series Rolling Shutter Motors support shutters up to 170 kg and a maximum height of 7 m. The DR Small 170B includes an electro-brake, while the DR Small 170 does not.
What power supply and operating specifications do the listed DR-Series models use?
The listed models operate at 230V, 50 Hz. Depending on the model, specifications include 630–1330 W maximum power, 2.7–5.8 A absorbed current, 8–10 rpm crown speed and 170–430 Nm torque; the DR Small 170 and 170B, DR Medium 260B and DR Medium 380B are specified for operation from -20°C to +55°C.
Which controls and accessories are available for Able DR-Series Rolling Shutter Motors?
Compatible control units include CX TOP and CX BASIC 433. Available accessories include key switches, electro-brake components, a low-voltage remote interface, shaft adapters, transmitters and receivers, photocells, security devices and access-control equipment.
Can I get Able DR-Series motor selection and installation in Qatar?
Comunello Qatar can provide selection, supply, installation, commissioning and maintenance for compatible Able DR-Series systems. For a selection assessment, provide the shutter width and height, approximate curtain weight, shaft and crown dimensions, existing motor label and expected daily use.
