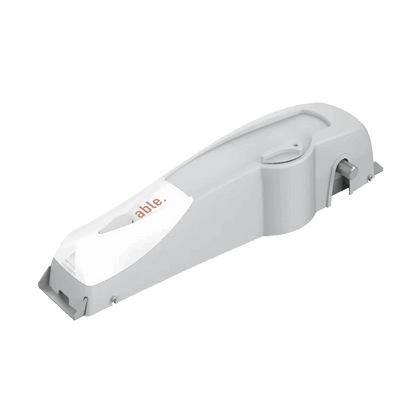

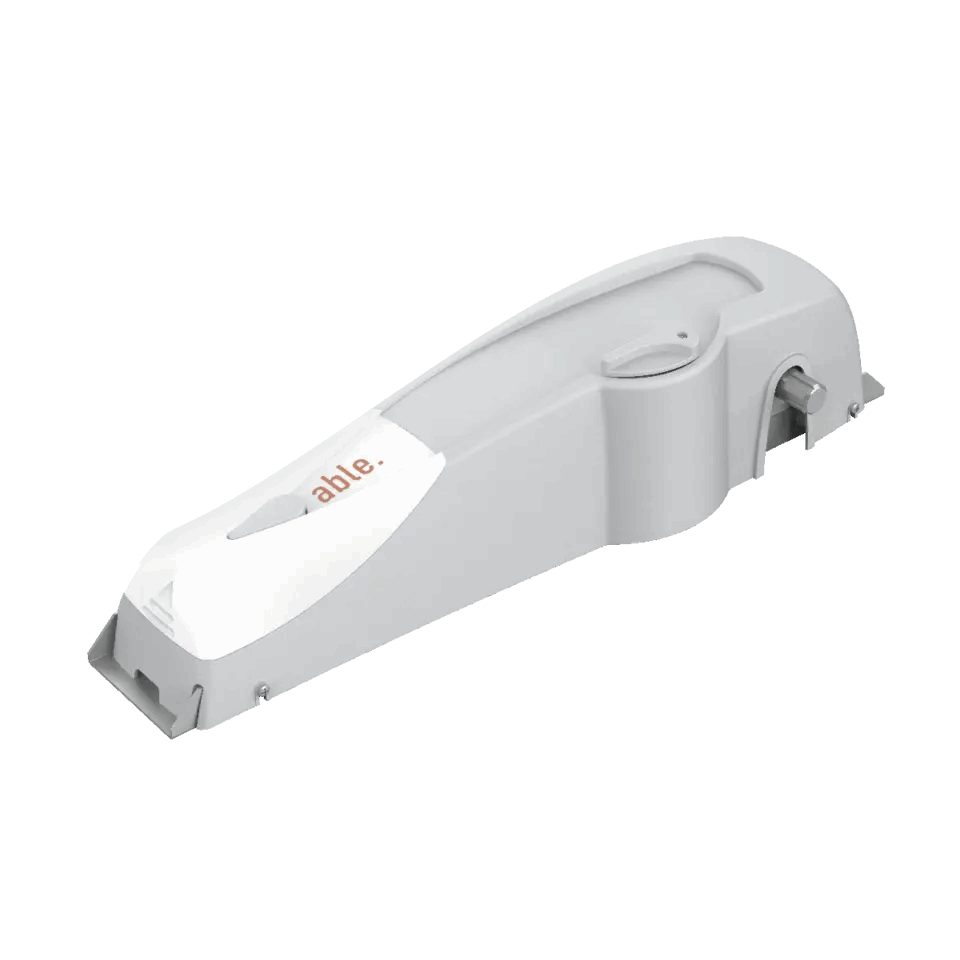

Able DD Small 9000D 230 garage door operator in Qatar is an irreversible 230V electromechanical actuator for balanced garage doors. It is designed for doors up to 9 m² with one operator, while the Able catalogue specifies up to 14 m² when two motors are installed in combination.

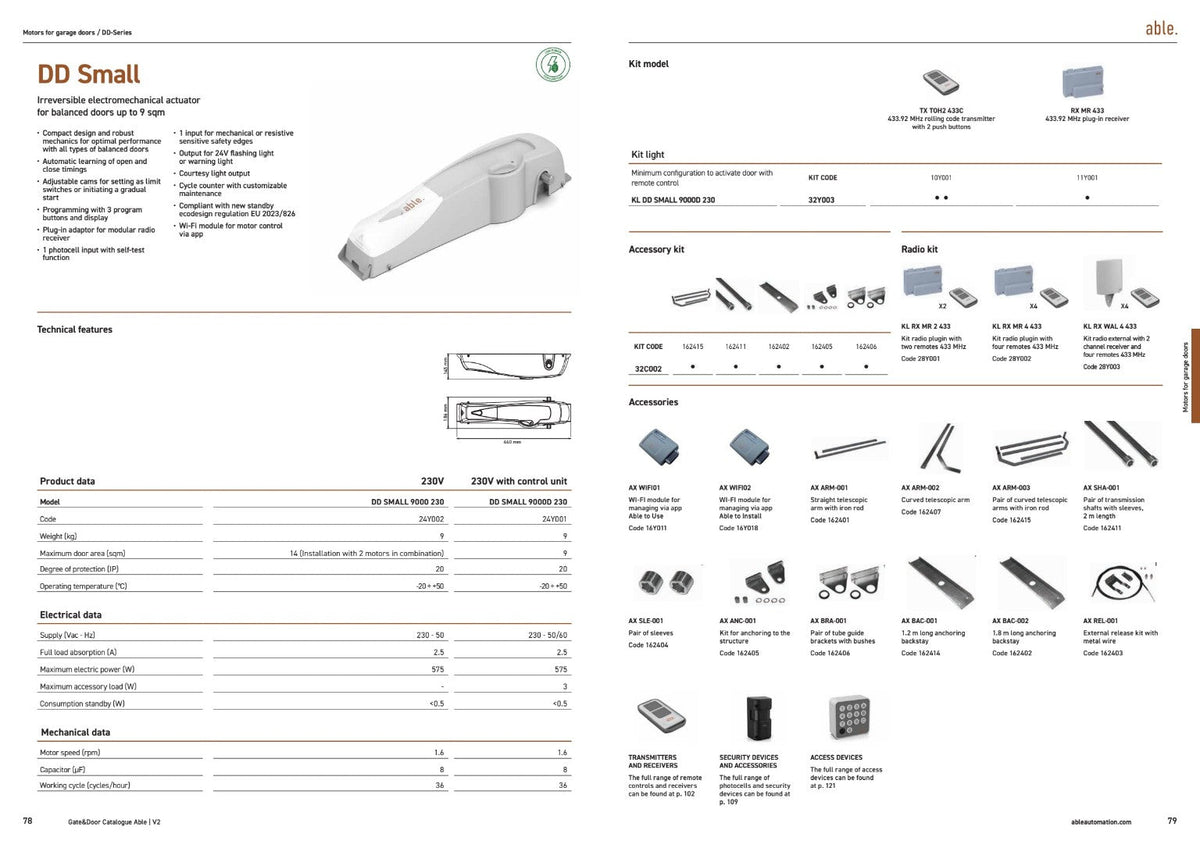

Technical specifications
- Model: DD SMALL 9000D 230
- Supply: 230V AC, 50 Hz
- Maximum door area: 9 m² with one motor; up to 14 m² with two motors in combination
- Weight: 9 kg
- IP20
- Operating temperature: -20°C to +50°C
- Full-load absorption: 2.5 A
- Maximum electric power: 575 W
- Motor speed: 1.6 rpm
- Capacitor: 8 µF
- Working cycle: 36 cycles/hour
- Standby consumption: <0.5 W
Control and safety
Features include automatic learning of opening and closing times, adjustable cam limit switches, programmable control with three buttons and display, modular radio-receiver provision, photocell input with self-test, mechanical or resistive safety-edge input, 24V flashing/warning-light output, courtesy-light output, cycle counter with customizable maintenance, optional Wi-Fi app control and compliance with standby ecodesign regulation EU 2023/826.
Accessories
The DD-Series supports straight and curved telescopic arms, transmission shafts and sleeves, anchoring and guide brackets, backstays, external release kit, radio controls, safety devices and access-control equipment. Final configuration depends on the balanced-door geometry and installation arrangement.
Comunello Qatar can provide product selection, supply, installation, commissioning and maintenance.
Request a Quote on WhatsApp · Contact Comunello Qatar
Frequently asked questions
What size garage door can the Able DD Small 9000D automate?
The verified model is specified for balanced garage doors up to 9 m² with one operator and up to 14 m² when two motors are installed in combination.
Is the Able DD Small 9000D a 230V operator?
Yes. The verified DD Small 9000D 230 operates from a 230V AC, 50 Hz supply.
Can the Able DD operator use Wi-Fi control?
The verified control system supports optional Wi-Fi app control when configured with the appropriate compatible equipment.
Do you install Able DD garage door operators in Qatar?
Yes. Comunello Qatar provides selection, supply, installation, commissioning and maintenance for compatible Able DD systems.
Balanced-Door Mechanism Assessment
Photograph the inside arms, pivot points, counterbalance and existing motor arrangement. Door area alone does not establish suitability; the drive connections, mounting geometry and mechanical balance must also match the exact manufacturer's installation requirements.
Single- or Dual-Operator Installation
The installer should confirm whether one or two operators are appropriate for the door and specify the required transmission components and controls. Request an itemised offer covering mounting, electrical work, protective devices and commissioning.
Release Access and Aftercare
Keep manual release accessible and discuss emergency access if the garage has no other entrance. Maintenance can cover drive connections, brackets, door balance, limit operation and installed safety functions according to manufacturer instructions.
