Able BA-Series Automatic Road Barriers in Qatar

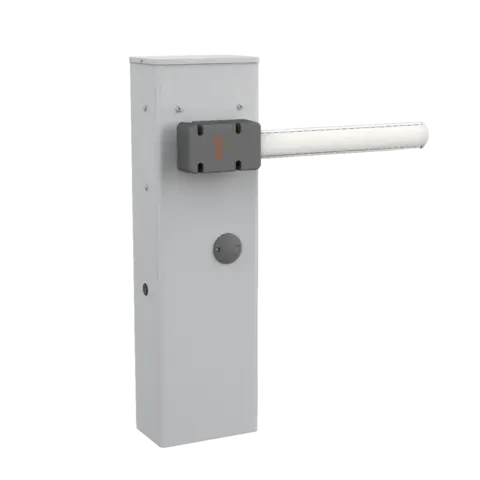

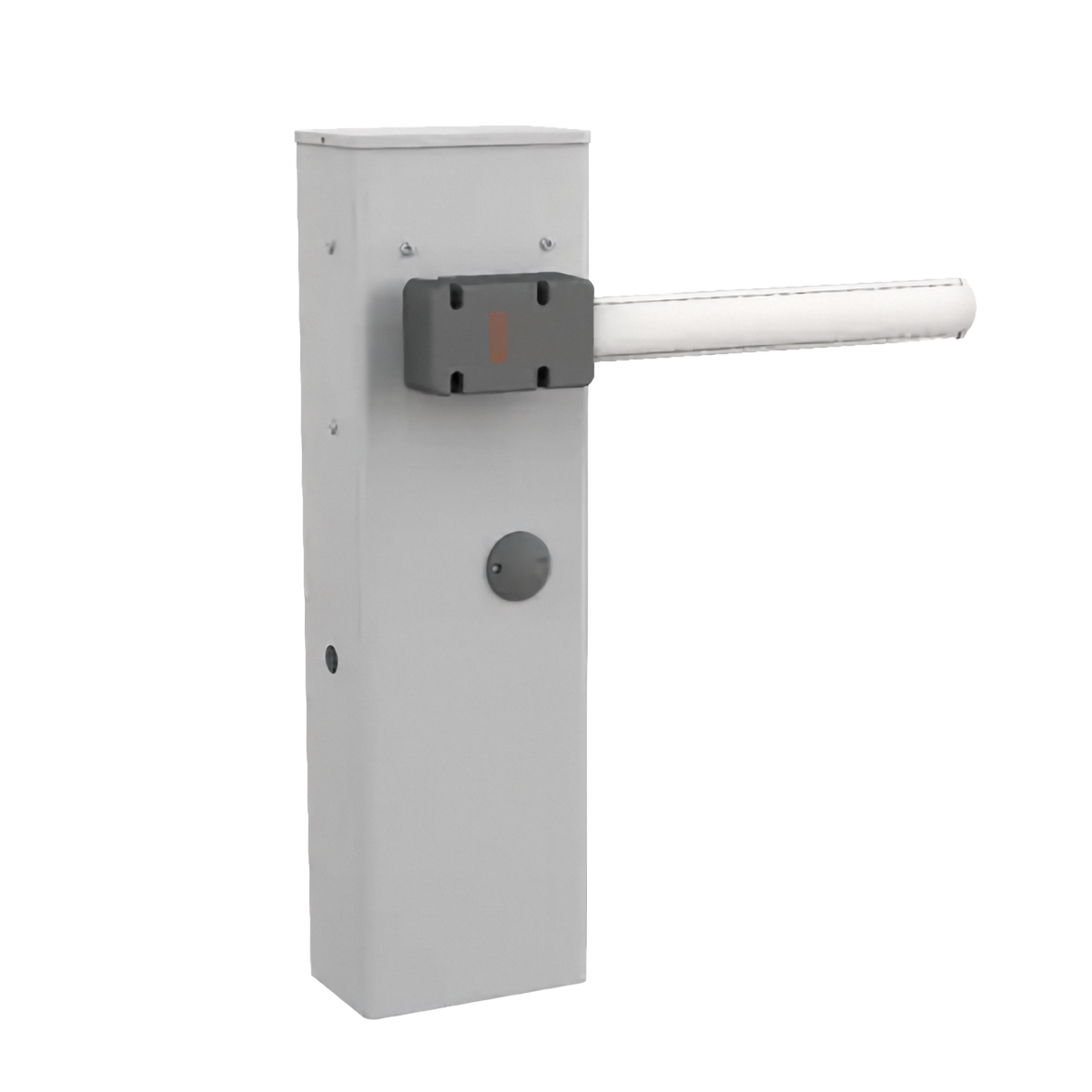

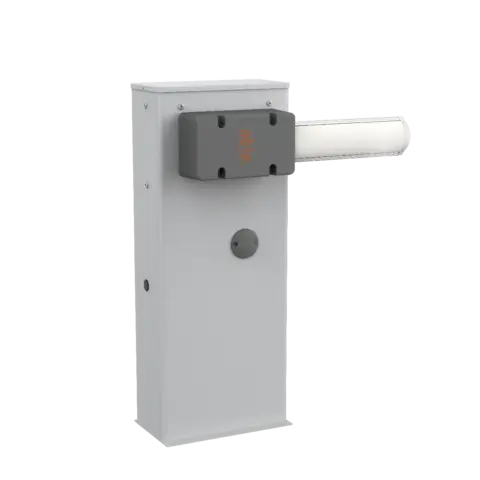

The Able BA-Series is a range of 24V quick-opening automatic road barriers for residential and multi-user vehicle entrances. The BA Medium is designed for passages up to 4 m wide, while the BA Large covers passages up to 6 m.

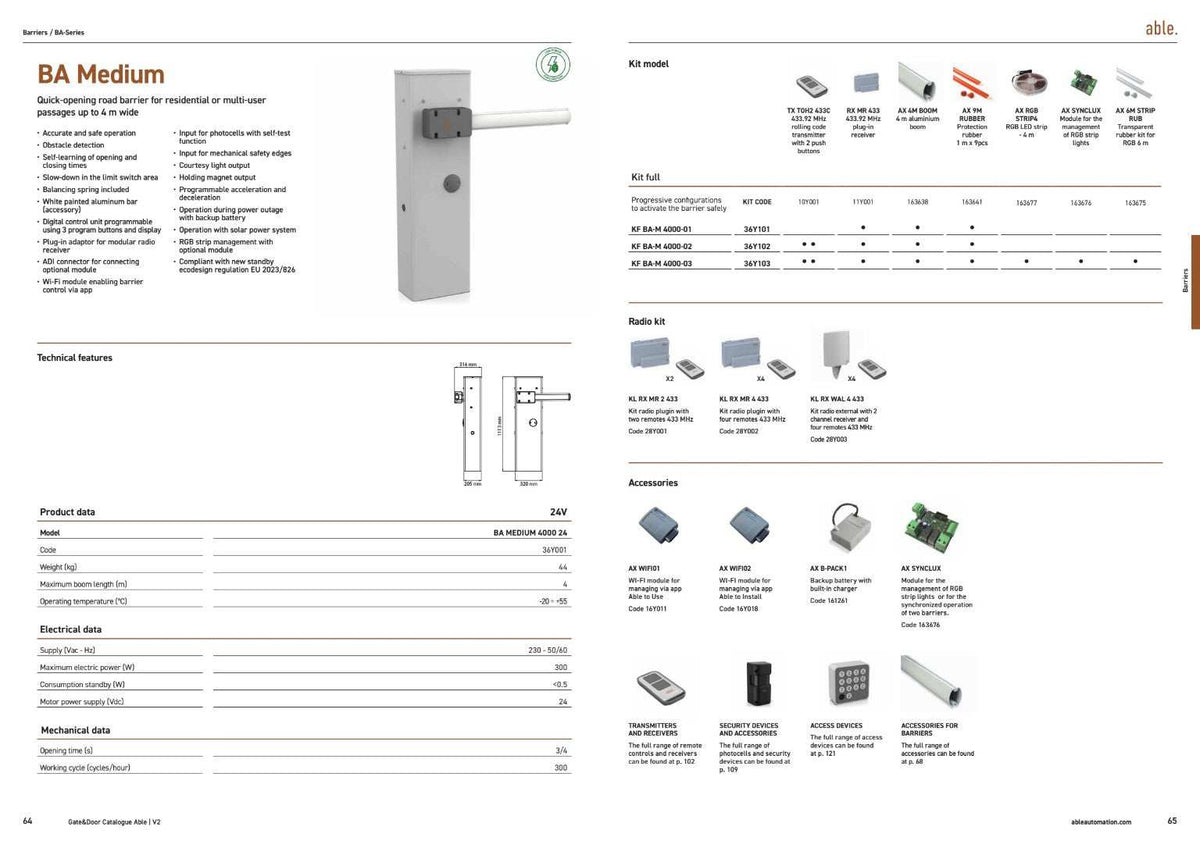

BA Medium 4000 24
- Maximum boom length: 4 m
- Opening time: 3–4 seconds
- Working cycle: 300 cycles/hour
- Motor: 24V DC
- Supply: 230V, 50/60 Hz
- Maximum electric power: 300 W
- Standby consumption: <0.5 W
- Operating temperature: -20°C to +55°C
- Weight: 44 kg
- Model code: 36Y001

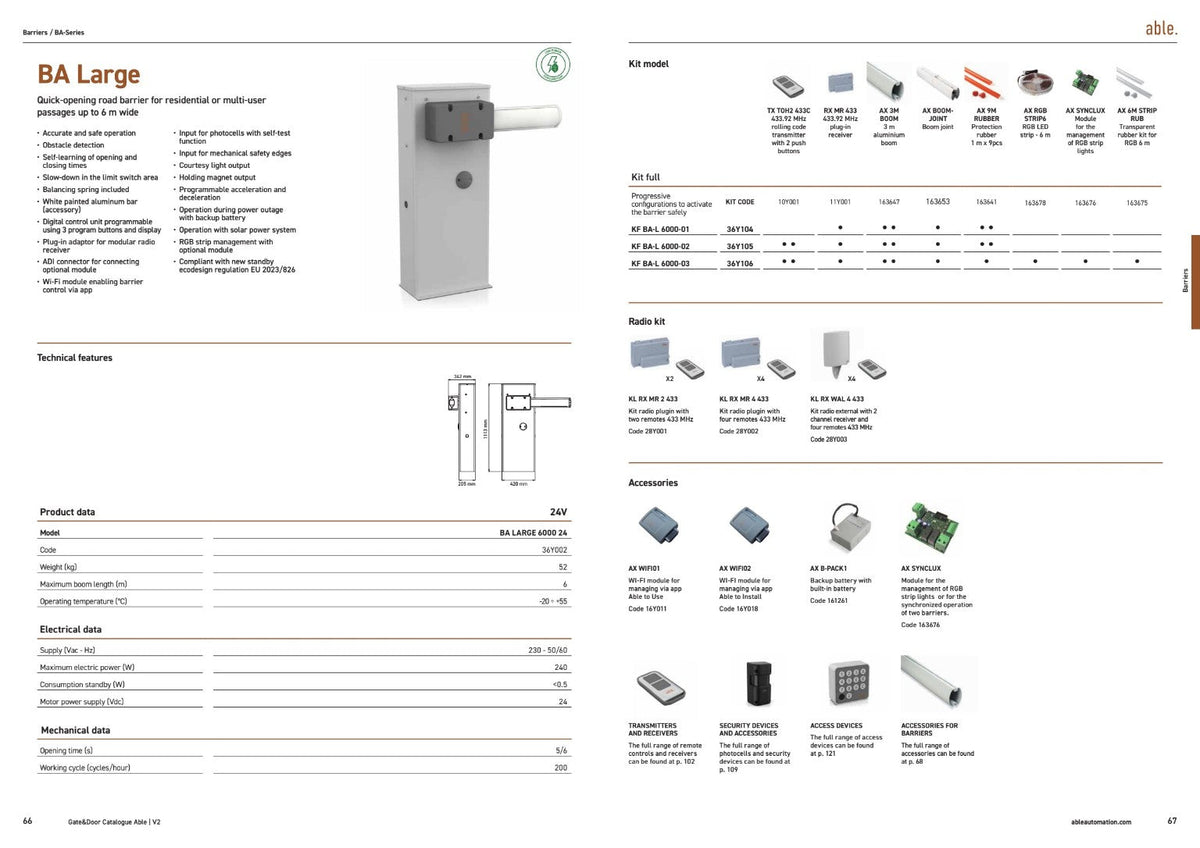

BA Large 6000 24
- Maximum boom length: 6 m
- Opening time: 5–6 seconds
- Working cycle: 200 cycles/hour
- Motor: 24V DC
- Supply: 230V, 50/60 Hz
- Maximum electric power: 240 W
- Standby consumption: <0.5 W
- Operating temperature: -20°C to +55°C
- Weight: 52 kg
- Model code: 36Y002
Key Features
- Accurate and safe operation with obstacle detection
- Self-learning opening and closing times
- Slow-down in the limit-switch area
- Balancing spring included
- White painted aluminium barrier boom supplied as an accessory
- Digital control unit programmable using three buttons and display
- Plug-in adaptor for modular radio receiver
- Optional connector for encoder
- Wi-Fi module support for app-based barrier control
- Photocell input with self-test and mechanical safety-edge input
- Courtesy-light and holding-magnet outputs
- Programmable acceleration and deceleration
- Backup-battery operation and solar-system compatibility
- Optional RGB boom-light management
- EU 2023/826 standby-regulation compliant

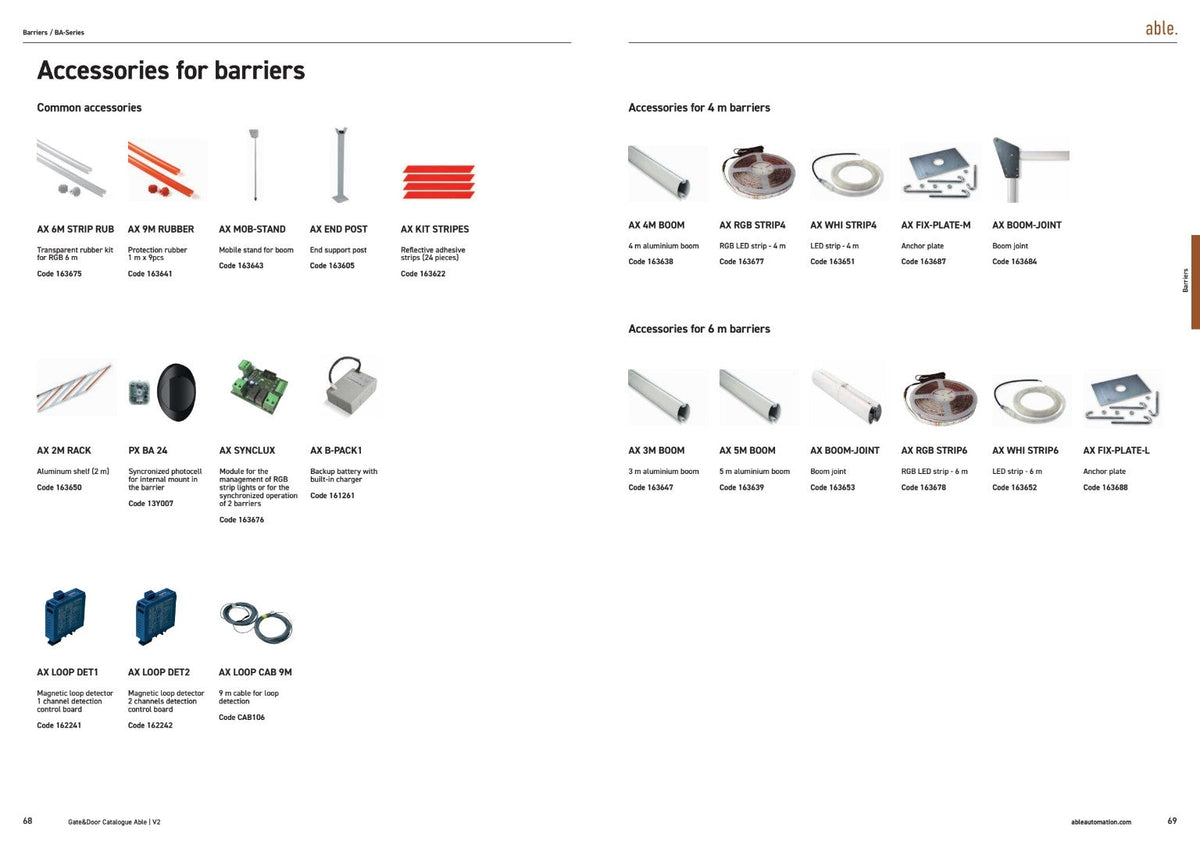

Available Accessories
Options include 4 m and 6 m aluminium boom configurations, boom joints, protective rubber, RGB or white LED strips, reflective strips, mobile boom stand, end support post, synchronized photocells, loop detectors and loop cable, backup battery, Wi-Fi modules, radio receivers, transmitters, security devices and access-control devices.
Applications in Qatar
Suitable for villas, residential compounds, offices, commercial properties, parking entrances and controlled vehicle-access points. Final boom configuration, safety devices and accessories should be selected according to the entrance width, traffic frequency and site conditions.
Request a Quote: Contact Comunello Qatar for product selection, supply and installation of Able automatic barriers in Qatar.
Frequently asked questions
What is the difference between the Able BA Medium and BA Large road barriers?
The verified BA Medium 4000 24 is designed for boom lengths up to 4 m with an opening time of 3–4 seconds and up to 300 cycles per hour. The BA Large 6000 24 supports boom lengths up to 6 m with an opening time of 5–6 seconds and up to 200 cycles per hour.
Are Able BA barriers suitable for busy entrances?
They are designed for automated vehicle-access applications, but the correct model should be selected according to entrance width, traffic frequency, peak operating pattern and required accessories.
What safety features are available with the Able BA-Series?
The verified range supports obstacle detection, photocell self-test input, mechanical safety-edge input, programmable acceleration and deceleration, and compatible safety accessories. The final safety configuration depends on the project design.
Can an Able BA barrier work with access control?
Yes. The verified control platform supports integration options for vehicle-access systems, with the final interface selected according to the access-control equipment and project requirements.
Can the Able BA-Series use backup battery or solar power?
The verified BA range supports backup-battery and solar-power options when configured with the appropriate compatible accessories.
Do you install Able automatic barriers in Qatar?
Yes. Comunello Qatar provides technical selection, supply, professional installation, commissioning and maintenance for compatible Able BA-Series automatic road barriers across Qatar.
Barrier Lane Design and Quotation Scope
Send the clear passage width, overhead clearance, vehicle types, peak traffic and required opening method. Confirm the exact boom, balancing arrangement and support accessories. Define vehicle detection and closing logic separately from the access reader's opening command.
Request an itemised quotation for the barrier, boom, foundation, electrical connection, detectors, protective devices, access interfaces and commissioning. Where pedestrians use the entrance, plan a separate route and assess the actual safety risks.
Barrier Maintenance and AMC
Maintenance should follow the selected model's instructions and assess boom balance, fixings, cabinet condition, detection and release operation. An AMC can define visits, reporting, response arrangements and replacement-parts coverage.
