Able AR-Series Articulated Swing Gate Motors in Qatar

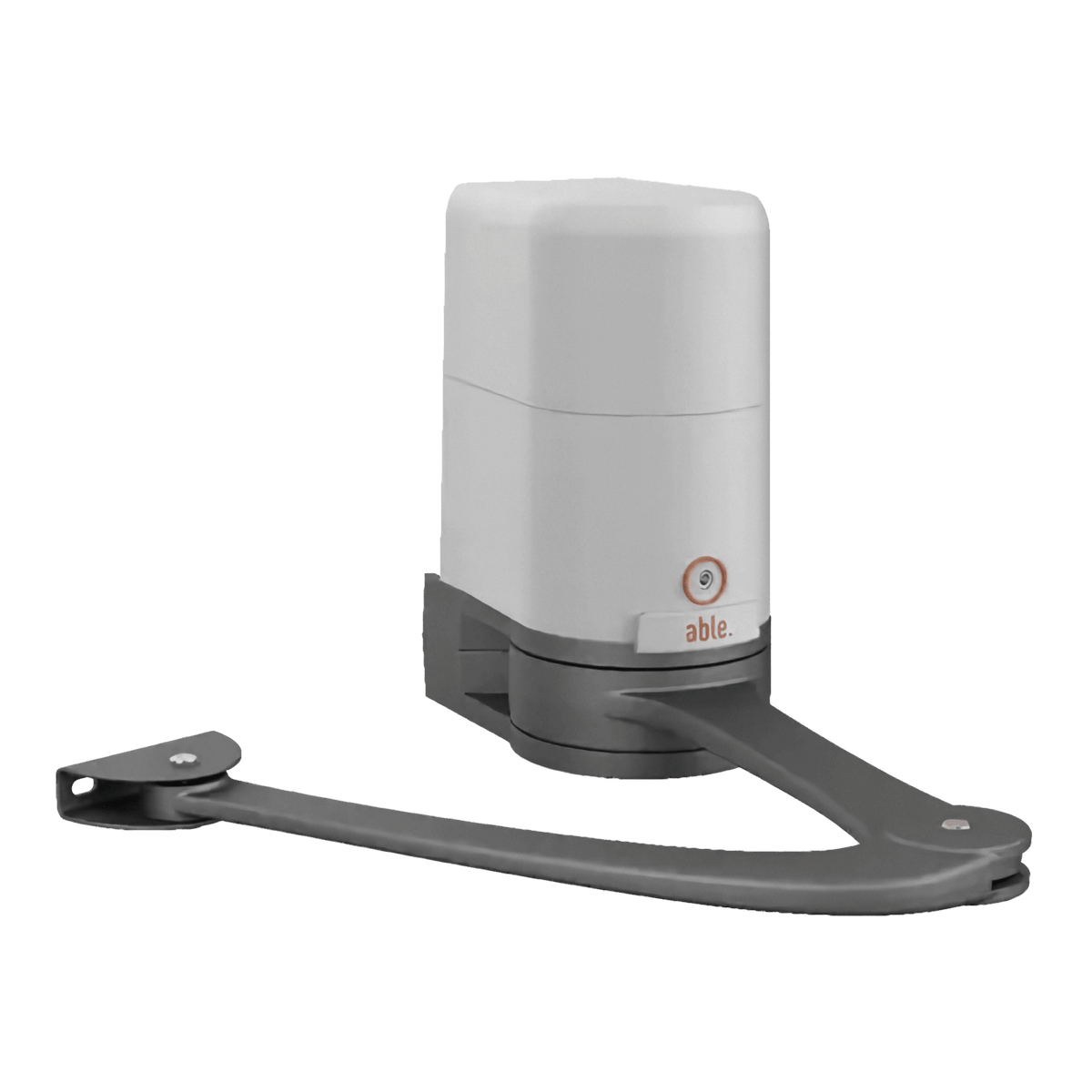

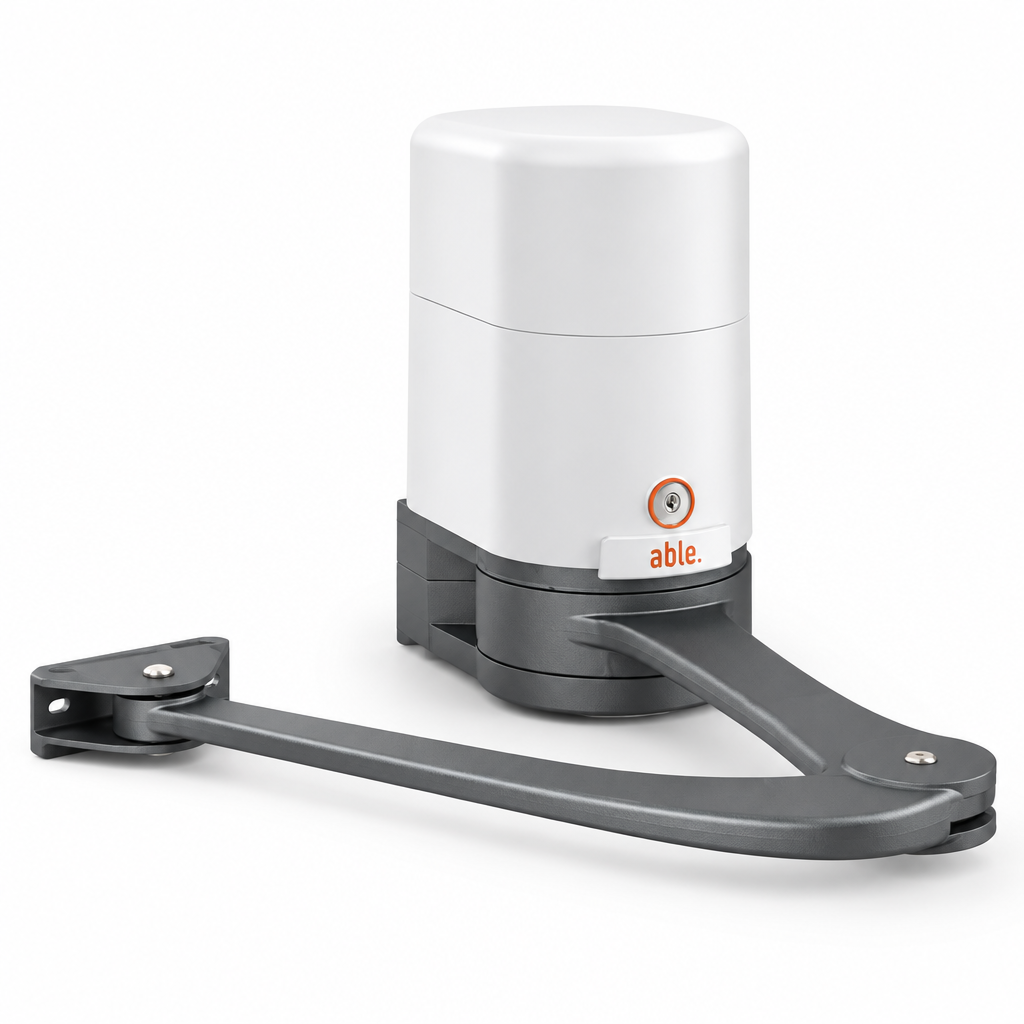

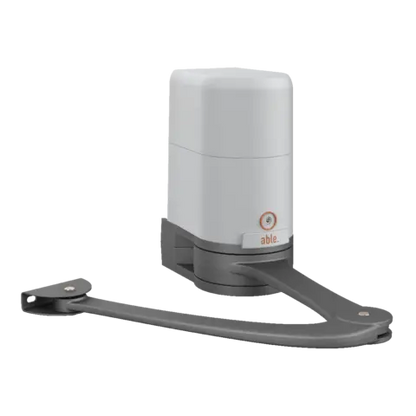

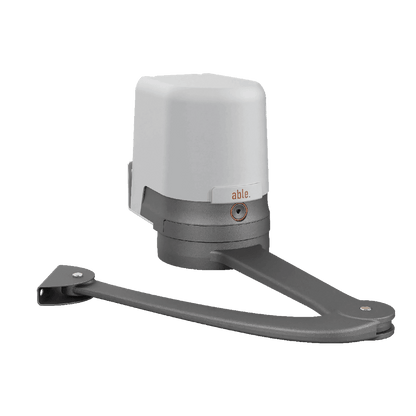

The Able AR-Series is a range of articulated-arm swing gate operators designed for residential gates and installations with medium or large pillars. The range covers gate leaves up to 3 m, with 24V and 230V configurations depending on the model.

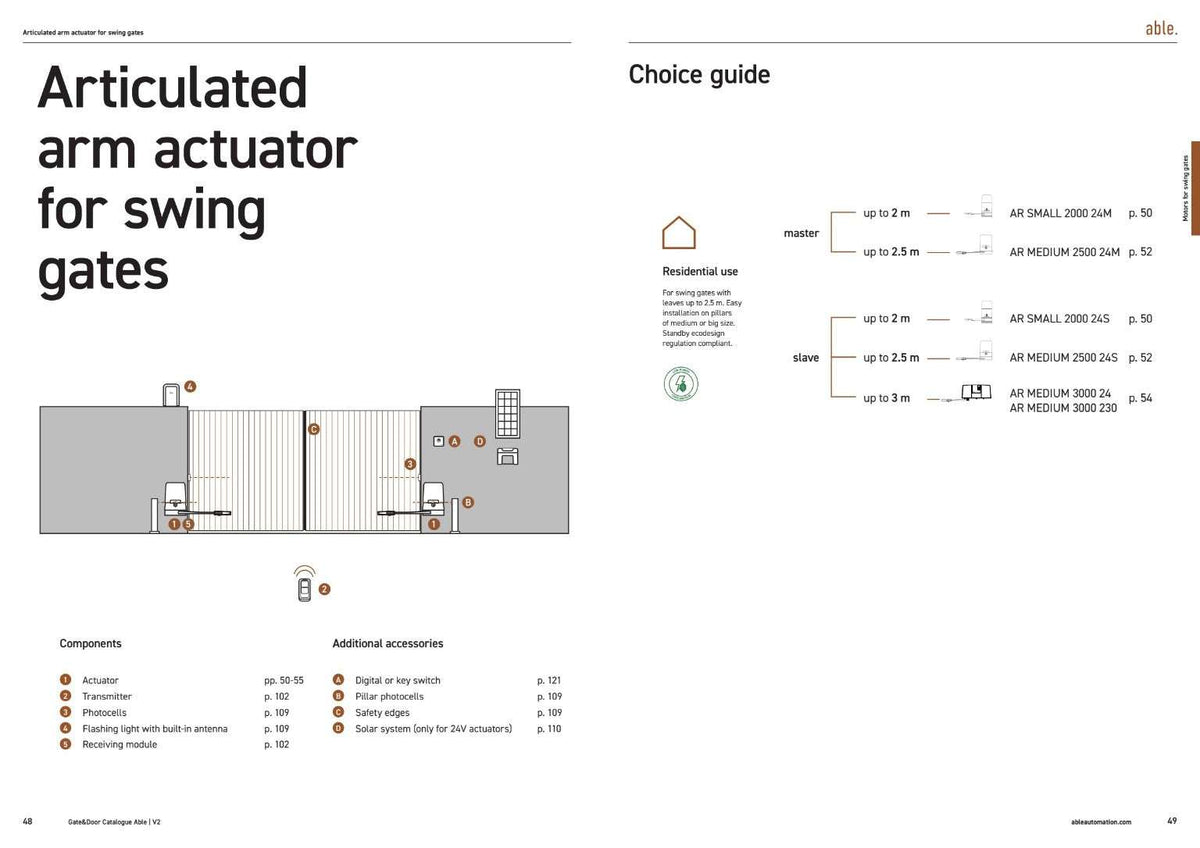

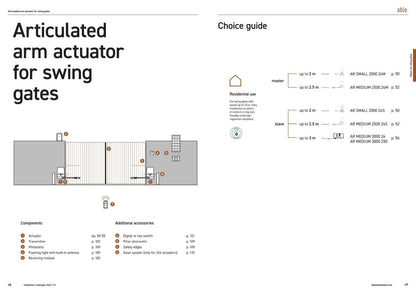

AR-Series model selection

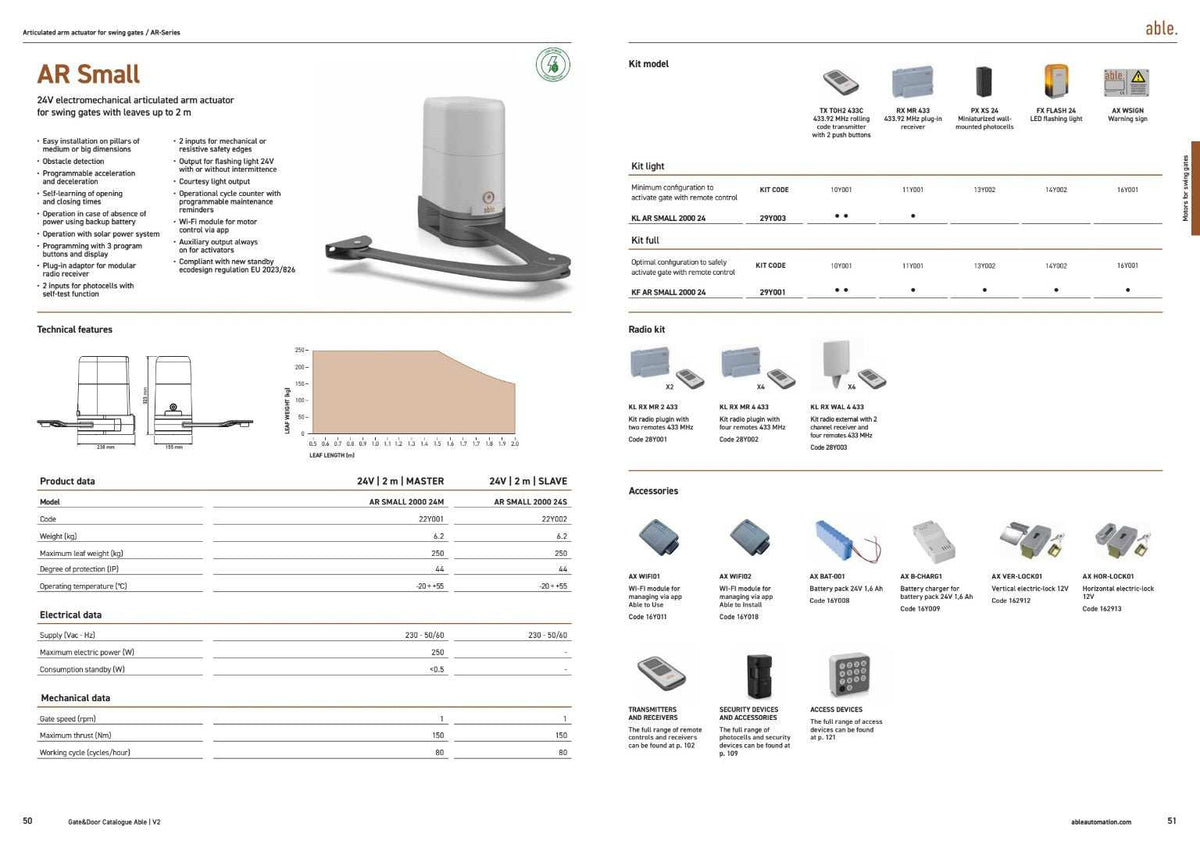

  • AR Small 2000 24M / 24S: 24V master/slave system for leaves up to 2 m and 250 kg. IP44, -20°C to +55°C, 150 Nm maximum thrust and up to 80 cycles/hour.

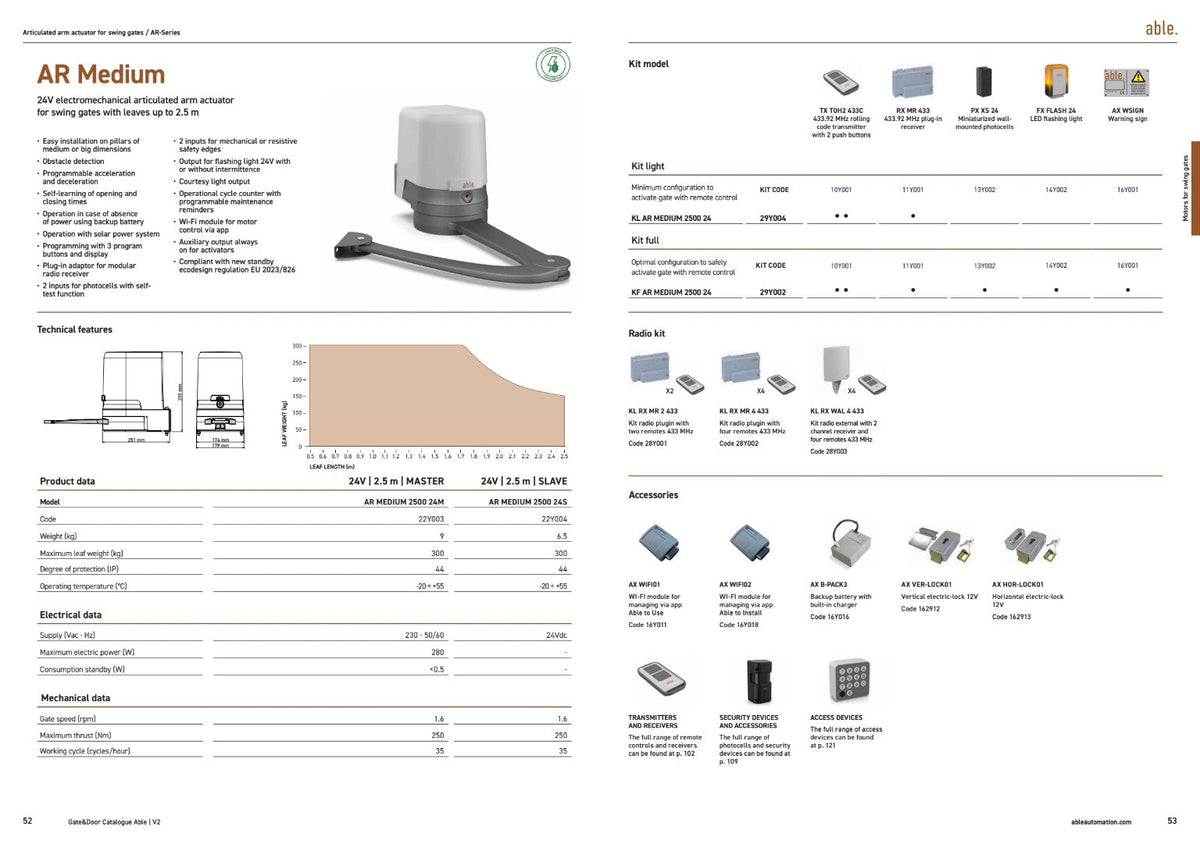

  • AR Medium 2500 24M / 24S: 24V master/slave system for leaves up to 2.5 m and 300 kg. IP44, -20°C to +55°C, 250 Nm maximum thrust and up to 35 cycles/hour.

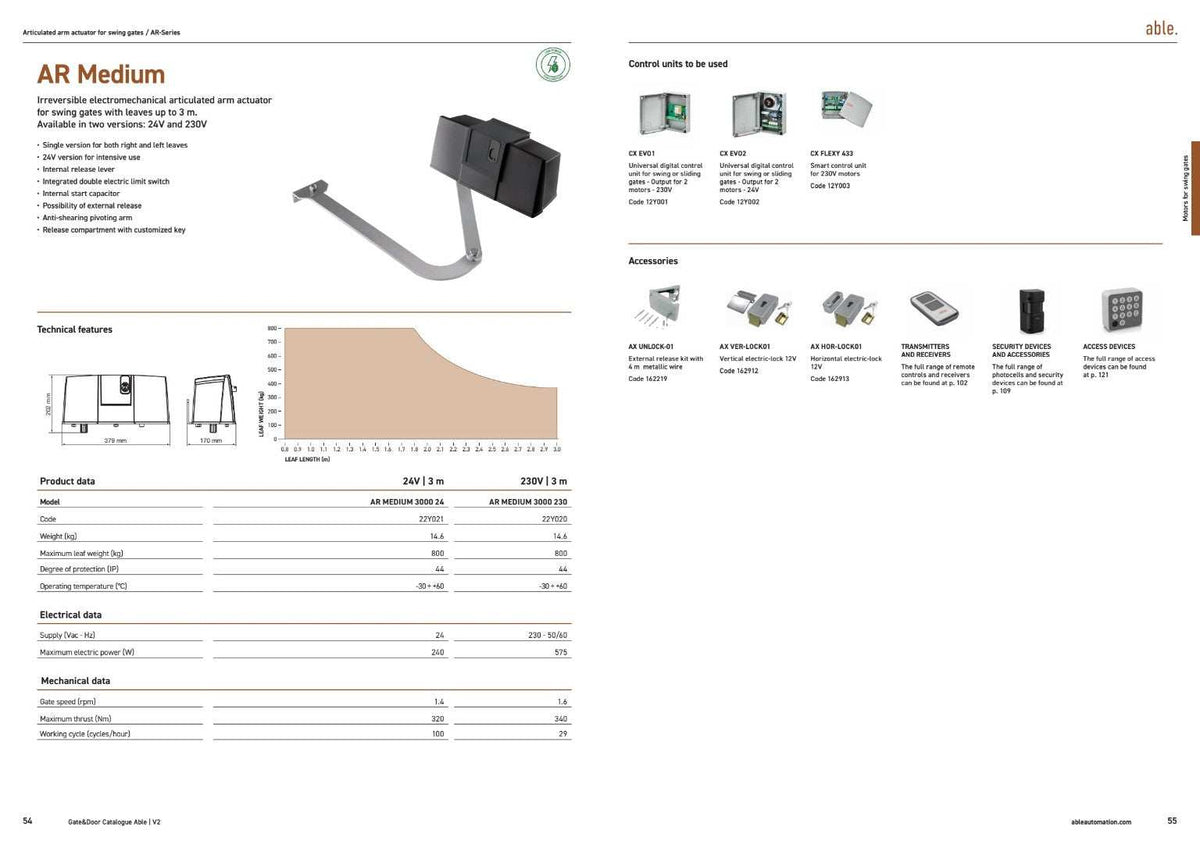

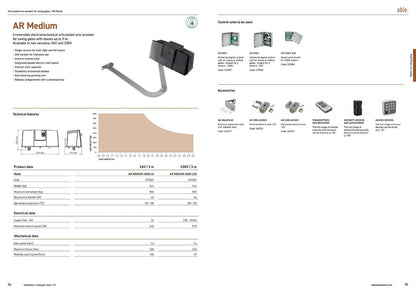

  • AR Medium 3000 24: irreversible 24V operator for leaves up to 3 m and up to 800 kg. IP44, -30°C to +60°C, 240 W, 320 Nm maximum thrust and up to 100 cycles/hour.
  • AR Medium 3000 230: irreversible 230V operator for leaves up to 3 m and up to 800 kg. IP44, -30°C to +60°C, 575 W, 340 Nm maximum thrust and up to 29 cycles/hour.

Key features

The 24V AR Small and AR Medium 2500 systems include obstacle detection, programmable acceleration and deceleration, self-learning opening/closing times, backup-battery compatibility, photocell self-test inputs, safety-edge inputs, courtesy-light output, cycle counter, optional Wi-Fi control and standby-energy compliance.

The AR Medium 3000 range provides a single version for right or left leaves, an internal release lever, integrated double electric limit switch, external release capability and an anti-shearing pivoting arm. The 24V version is designed for intensive use.

Control and accessories

Depending on the selected model, compatible solutions include CX EV01, CX EV02 and CX FLEXY 433 control units, transmitters and receivers, photocells, safety devices, access-control devices, Wi-Fi modules, backup batteries and 12V vertical or horizontal electric locks.

Professional selection in Qatar

Correct operator selection depends on gate leaf length, actual gate weight, pillar and hinge geometry, opening angle, duty cycle and wind loading. Solid or privacy gates can create substantially higher wind loads, so site conditions should be checked before final motor selection.

Request a Quote: Contact Comunello Qatar for model selection, supply, installation and technical support for Able AR-Series swing gate automation in Qatar.

Frequently asked questions

Which Able AR-Series motor is suitable for my swing gate?

Selection depends on gate-leaf length, actual weight, pillar and hinge geometry, opening angle, wind exposure and expected operating cycles. The verified AR range covers leaves up to 3 m.

Is the Able AR-Series suitable for gates with large pillars?

The articulated-arm design can suit installations with medium or large pillars when the hinge and mounting geometry falls within the manufacturer's requirements.

What is the difference between the AR 24V and 230V models?

The range includes 24V and 230V configurations with different capacities and duty ratings. For example, the verified AR Medium 3000 24 supports intensive-use applications up to 100 cycles per hour, while the 230V version is rated up to 29 cycles per hour.

Can the Able AR-Series automate a solid privacy gate?

Potentially, but solid gates create additional wind loading. Gate surface area, site exposure, leaf dimensions and operator capacity should be evaluated before final selection.

Do you install Able AR swing gate motors in Qatar?

Yes. Comunello Qatar provides model selection, supply, professional installation and technical support for compatible Able AR-Series systems.

Articulated-Arm Installation Assessment

Measure the hinge offset and pillar width, and photograph the fully open and closed leaves. The arm needs clearance throughout its movement, including around walls, fences and parked vehicles. Confirm the mounting dimensions and required opening angle against the selected model's manual.

Installation, Safety and Handover

The quotation should identify operator quantity, control equipment, brackets, safety devices and electrical work. A double-leaf installation also requires suitable sequencing and mechanical stops. Protective measures should address the site's crushing and trapping points; photocells alone do not cover every hazard.

Maintenance and Smart Access

Ask about an AMC covering arm pivots, bracket security, hinge movement, safety devices and release operation. Compatible phone access or other access-control integration can be assessed against the exact controller.

Request an Able AR Quotation

Request a site assessment on WhatsApp. Explore swing gate automation and maintenance and AMC.

View full details

Frequently Asked Questions

Which Able AR-Series Articulated Swing Gate Motor should I choose for my gate?
The range covers gate leaves up to 3 m, with model capacities varying by length, weight and operating cycles. For example, the AR Small 2000 is rated for leaves up to 2 m and 250 kg, while the AR Medium 3000 models cover leaves up to 3 m and 800 kg. Selection also depends on hinge and pillar geometry, opening angle, wind loading and expected duty cycle.
What is the difference between the 24V and 230V Able AR-Series models?
The Able AR-Series includes both 24V and 230V configurations, with different power and cycle ratings depending on the model. The AR Medium 3000 24 is rated for up to 100 cycles per hour, while the AR Medium 3000 230 is rated for up to 29 cycles per hour. Check the model specifications against your gate and expected use.
Can Able AR-Series motors be installed on gates with medium or large pillars?
Yes, the articulated-arm range is designed for residential gates and installations with medium or large pillars. Suitability depends on the hinge and mounting geometry, so these should be checked against the selected model’s requirements before installation.
What features are included with the Able AR-Series swing gate motors?
The 24V AR Small and AR Medium 2500 systems include features such as obstacle detection, programmable acceleration and deceleration, self-learning opening and closing times, and backup-battery compatibility. They also provide inputs for photocell self-tests and safety edges, plus a courtesy-light output and cycle counter; optional Wi-Fi control is available.
Can I add Wi-Fi control or other accessories to an Able AR-Series system in Qatar?
Depending on the selected model, compatible options include Wi-Fi modules, transmitters and receivers, photocells, safety devices, access-control devices, backup batteries and 12V electric locks. Contact Comunello Qatar to confirm compatibility and request model selection, supply, installation and technical support.
