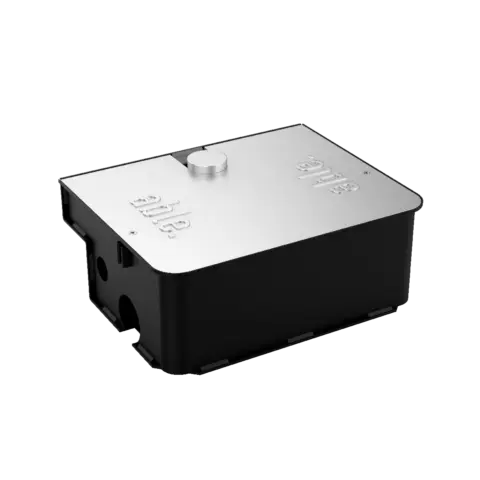

• Able UG Medium 3500 underground swing gate operator with a black housing, silver metal lid and raised markings
  • Able UG Medium 3500 underground gate operator, square metal foundation box with a silver embossed lid and black sides

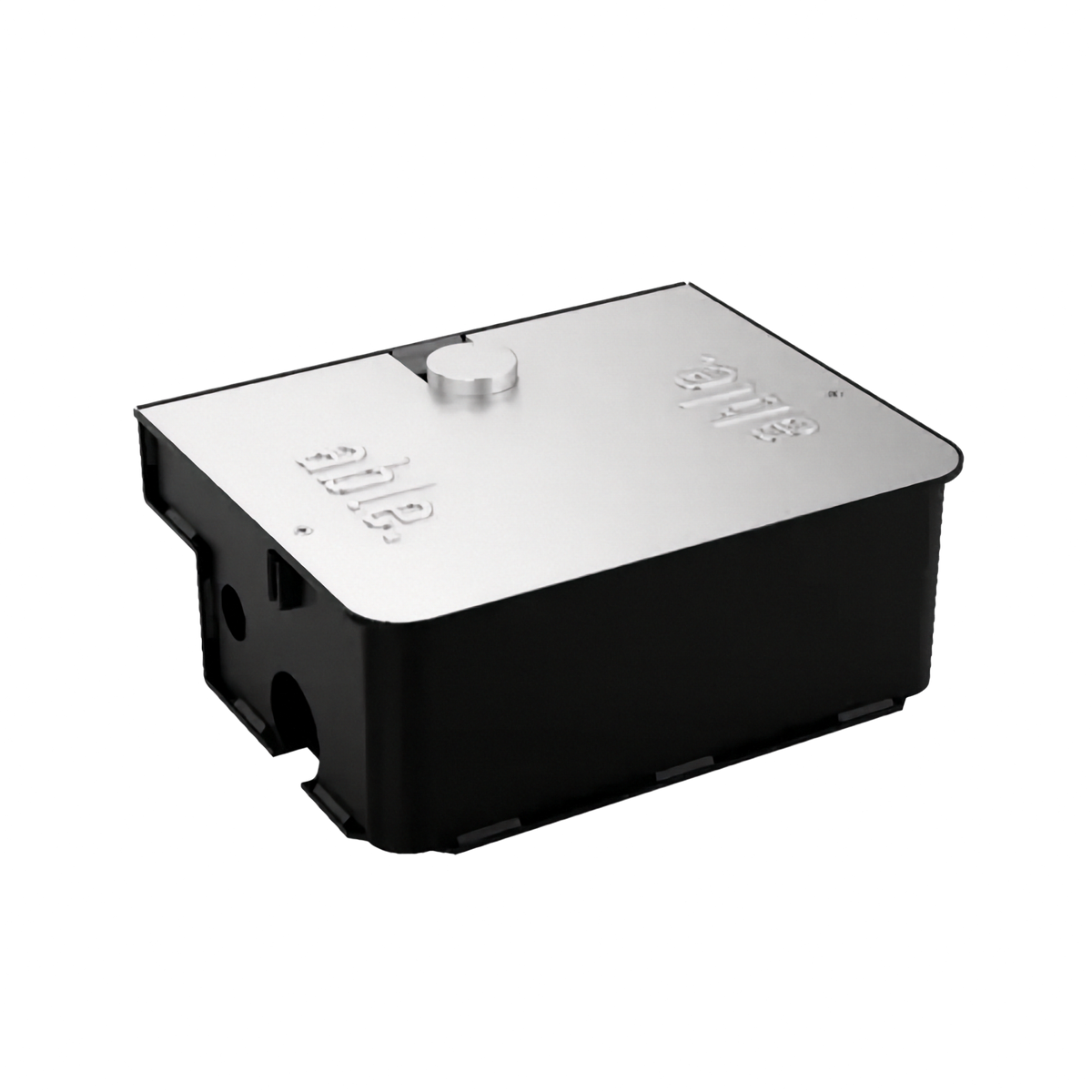

  • Underground gate operator box, a black rectangular housing with a silver metal lid and raised Able UG lettering

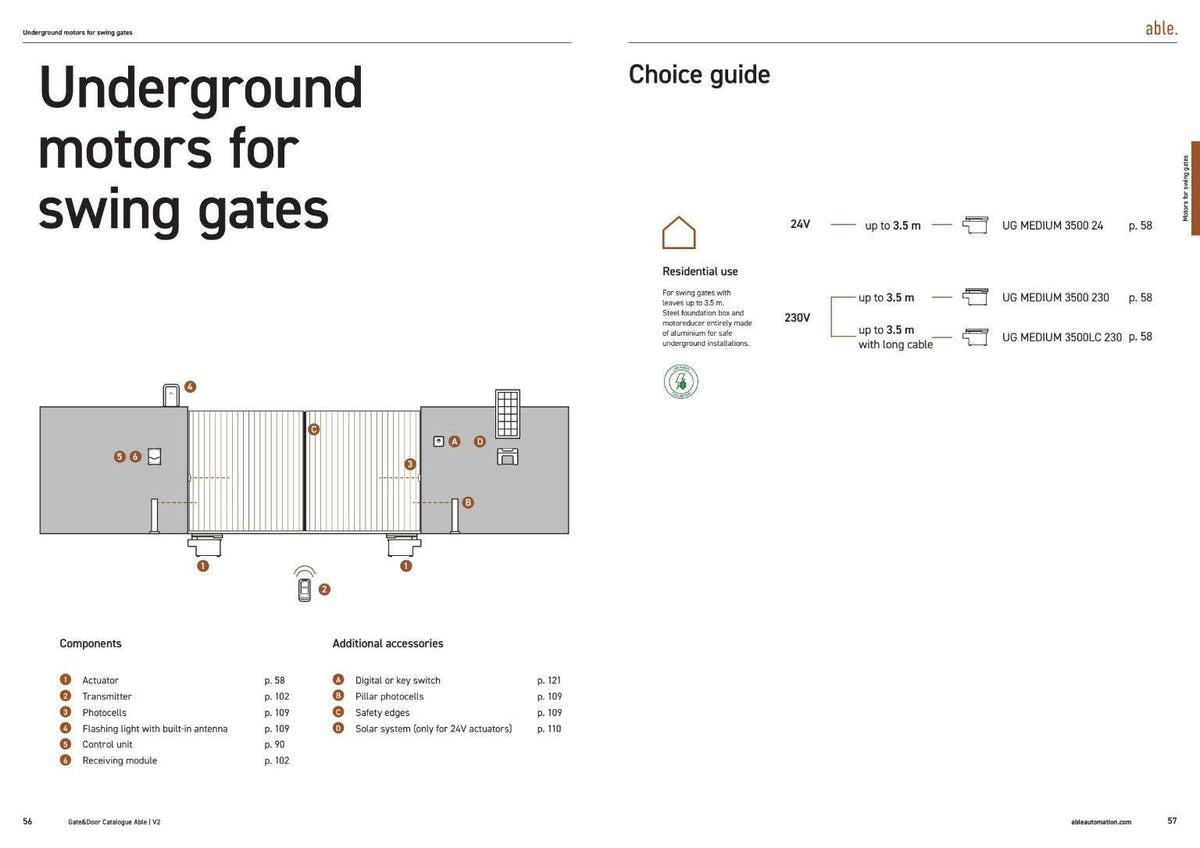

  • Underground swing gate motor system diagram with a component layout and Able UG Medium 3500 model selection guide

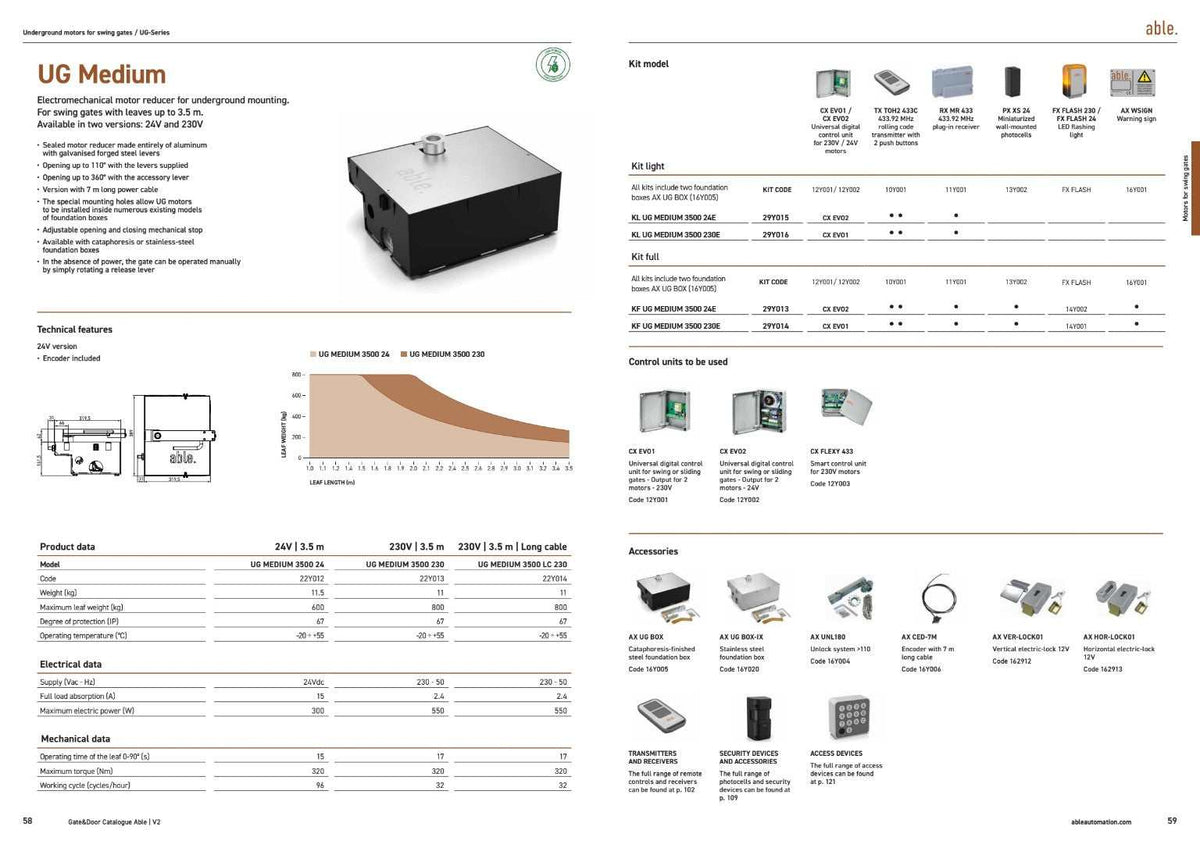

  • Able UG Medium 3500 underground swing gate operator with a black sealed housing, metal lid and installation diagrams
  • Able UG Medium 3500 underground swing gate operator with a compact black and silver metal motor reducer, shown with technical specifications and accessories.

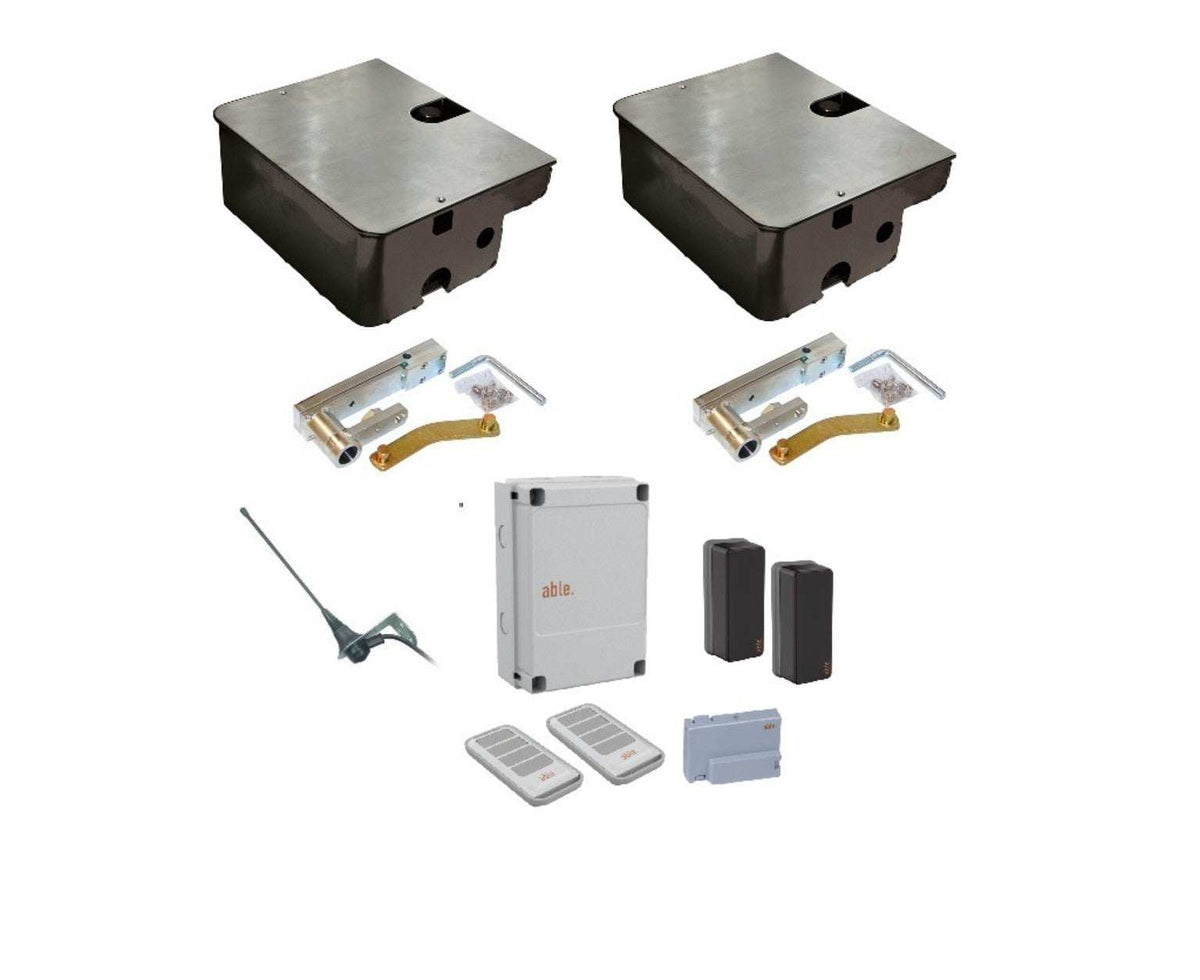

  • Able UG Medium 3500 underground swing gate operator kit with two dark metal housings, silver covers, linkage arms, control unit and remotes

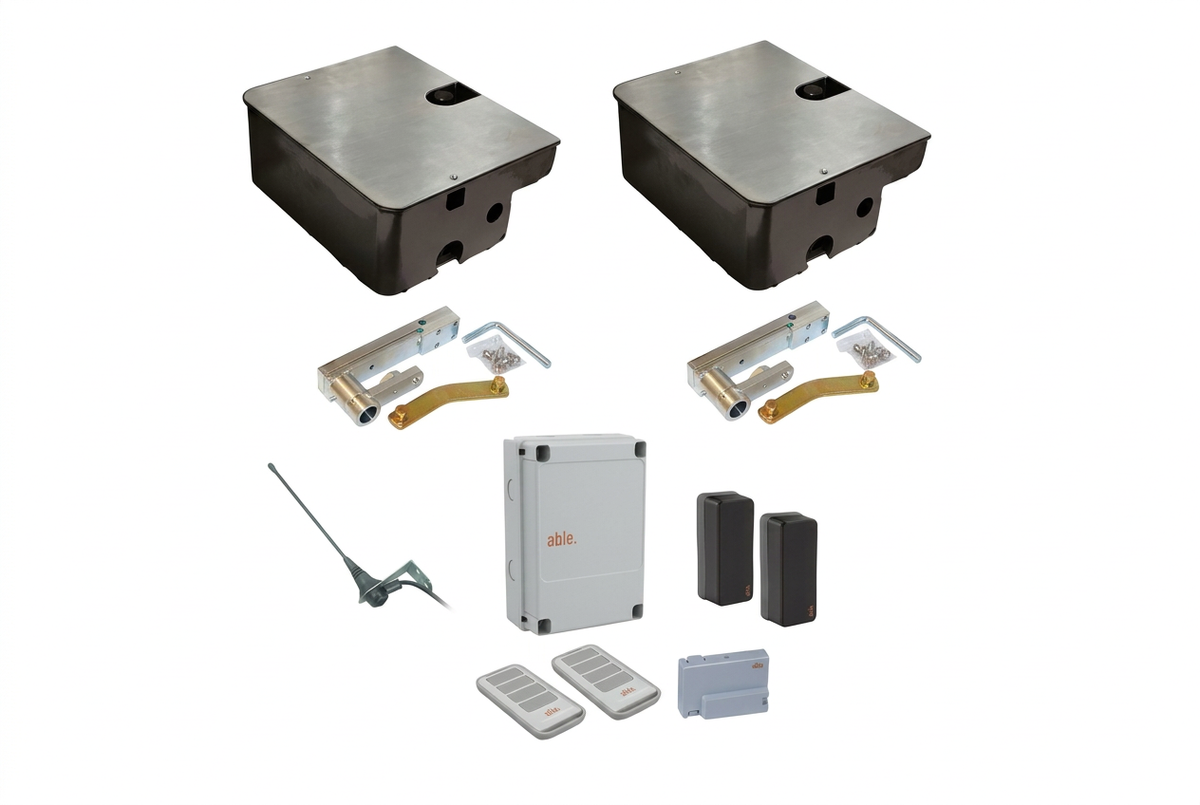

  • Underground swing gate operator kit, Able UG Medium 3500, with two metal housings, linkages, control box, remotes and sensors.
1 8

Able UG Medium 3500 Underground Swing Gate Operator | Up to 3.5 m | Qatar

Able UG Medium 3500 Underground Swing Gate Operator | Up to 3.5 m | Qatar

QAR 12.000,00
QAR 12.000,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Able UG-Series Swing Gate Operator Qatar is an underground electromechanical motor reducer designed to automate swing gates with leaves up to 3.5 m, providing a concealed installation that preserves gate aesthetics while delivering robust mechanical performance.

Who it's for: Specifiers, gate installers, and homeowners in Qatar fitting concealed automation on premium villas, architectural entrances, or privacy gates where a clean visual profile is required and where accurate selection must consider leaf length, hinge geometry, wind loading and foundation drainage.

Model-dependent leaf capacity: confirm the selected voltage and operator code against the manufacturer’s leaf-length/weight chart.

  • Capacity: for swing gate leaves up to 3.5 m — enables automation of medium-length leaves while matching site-specific hinge geometry and gate weight requirements.
  • Power options and duty: available in 24V and 230V models (UG Medium 3500 24, UG Medium 3500 230, UG Medium 3500 LC 230) — allows choice between a 24V DC encoder-equipped unit (600 kg per leaf, 300 W, up to 96 cycles/hour) and 230V AC options (800 kg per leaf, 550 W, up to 32 cycles/hour) for different operational needs.
  • Mechanical construction: sealed aluminium motor reducer with galvanised forged-steel levers and adjustable mechanical stops — ensures durable underground mounting, adjustable opening/closing limits, and manual release for operation during power failure.
  • Operating range and protection: supplied levers permit opening up to 110° (optional accessory lever for up to 360°), IP67 protection and -20°C to +55°C operating temperature — suitable for outdoor installations in Qatar when foundation drainage and civil preparation are correctly addressed.

This underground Electric Gate Opener from Able Automation stands out by combining concealed installation with specific model choices (24V or 230V) and mechanical features tailored to medium-length swing gates in Qatar.

Underground Installation and Drainage

Coordinate the foundation box, hinge axis and finished paving before civil work. Provide maintainable drainage and space for cover removal and manual release. Protection ratings do not remove the need for proper drainage and electrical installation.

Replacement and Quotation Requirements

Send leaf dimensions, approximate weight, opening angle, usage and Qatar location. For replacement work, identify the box and linkage as well as the motor. Request an itemised quotation for the exact operator version, boxes, controls, safety devices, excavation, cabling and commissioning.

Aftercare and Enquiries

Maintenance should assess drainage, linkage, fixings, gate movement, protective devices and release operation. Request an Able UG quotation. Explore swing gate installation and maintenance and AMC.

View full details

Frequently Asked Questions

What size swing gate is the Able UG Medium 3500 designed for?
The Able UG Medium 3500 is designed for swing gate leaves up to 3.5 m. Confirm the selected model’s leaf-length and weight capacity against the manufacturer’s chart, as capacity depends on the operator version.
What is the difference between the 24V and 230V Able UG Medium 3500 models?
The range includes a 24V DC encoder-equipped model rated for 600 kg per leaf, 300 W and up to 96 cycles per hour, plus 230V AC options rated for 800 kg per leaf, 550 W and up to 32 cycles per hour. Check the exact operator code and manufacturer’s chart when choosing a version for your gate.
How does the underground installation affect the appearance of my gate?
The Able UG Medium 3500 uses a concealed underground installation, preserving the gate’s visual profile. Plan the foundation box, hinge axis and finished paving before civil work, and allow space for cover removal and manual release.
What opening angle can the Able UG Medium 3500 provide?
The supplied levers permit opening up to 110°. An optional accessory lever allows opening up to 360°.
What site and maintenance requirements should I consider in Qatar?
The operator is rated IP67 and has a stated operating temperature range of -20°C to +55°C, but proper foundation drainage and electrical installation are still required. Maintenance should assess drainage, linkage, fixings, gate movement, protective devices and release operation.
What gate leaf length is the Able UG Medium 3500 designed for?
The Able UG Medium 3500 is designed for swing gate leaves up to 3.5 m. Confirm the selected operator code and voltage against the manufacturer’s leaf-length and weight chart before choosing a model.
What should I provide to get a quotation for the Able UG Medium 3500 in Qatar?
Share the gate leaf dimensions and approximate weight, opening angle, usage and Qatar location. For replacement work, identify the existing box and linkage as well as the motor; the quotation can specify the operator version and any required boxes, controls, safety devices, excavation, cabling and commissioning.
