Able TL-Series Telescopic Swing Gate Motors in Qatar

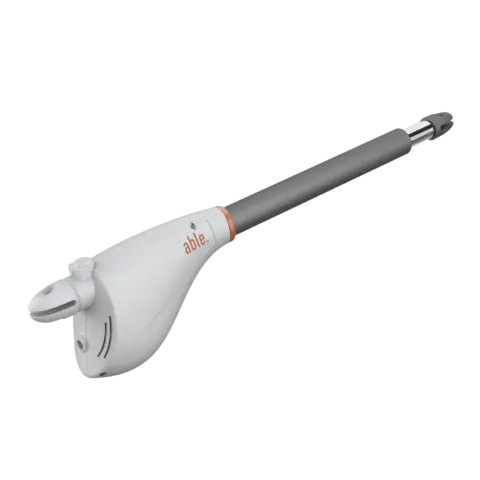

The Able TL-Series is a range of irreversible electromechanical telescopic actuators for swing gates. This page covers the verified 230V AC models for gate leaves from 2.5 m up to 4 m.

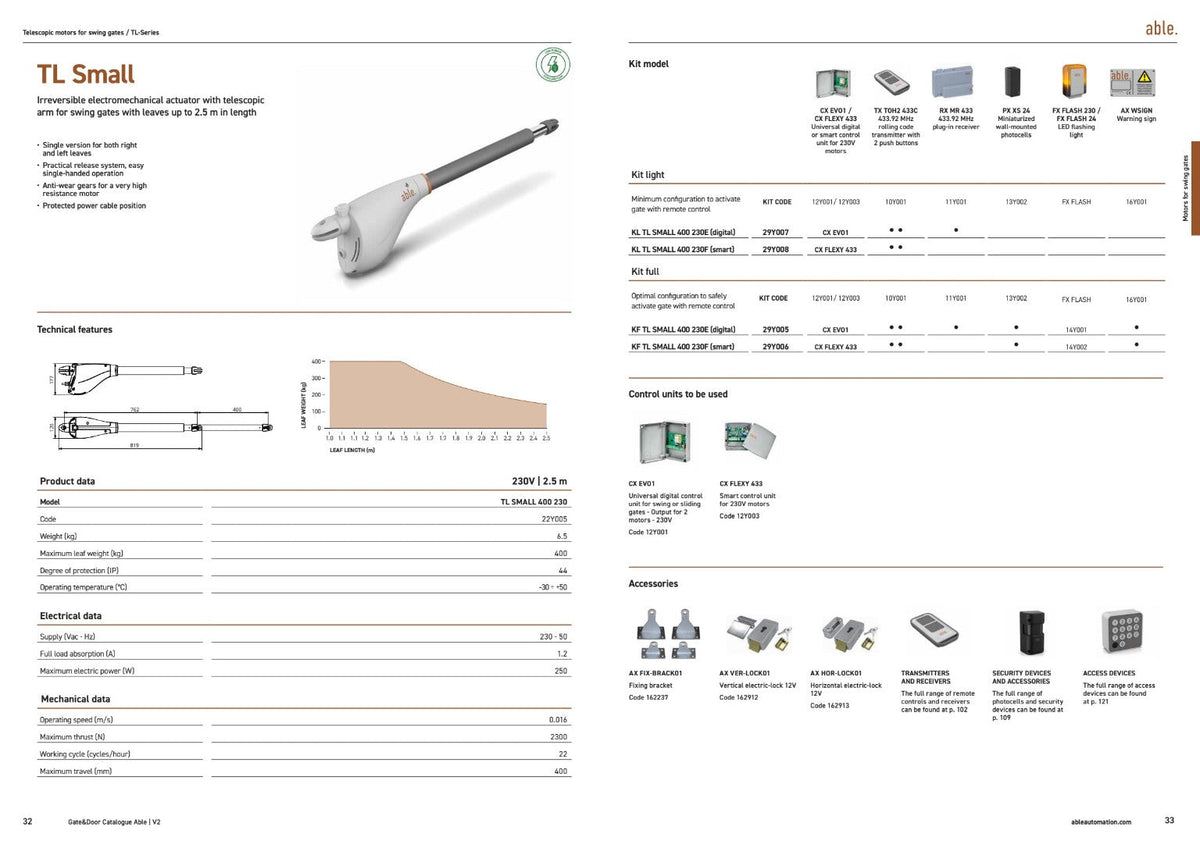

TL Small 400 230 – up to 2.5 m
- 230V / 50 Hz
- Maximum leaf length: 2.5 m
- Maximum leaf weight: 400 kg, subject to the Able leaf length/weight curve
- IP44
- Operating temperature: -30°C to +50°C
- Maximum electric power: 250 W
- Full-load absorption: 1.2 A
- Operating speed: 0.016 m/s
- Maximum thrust: 2300 N
- Working cycle: 22 cycles/hour
- Maximum travel: 400 mm

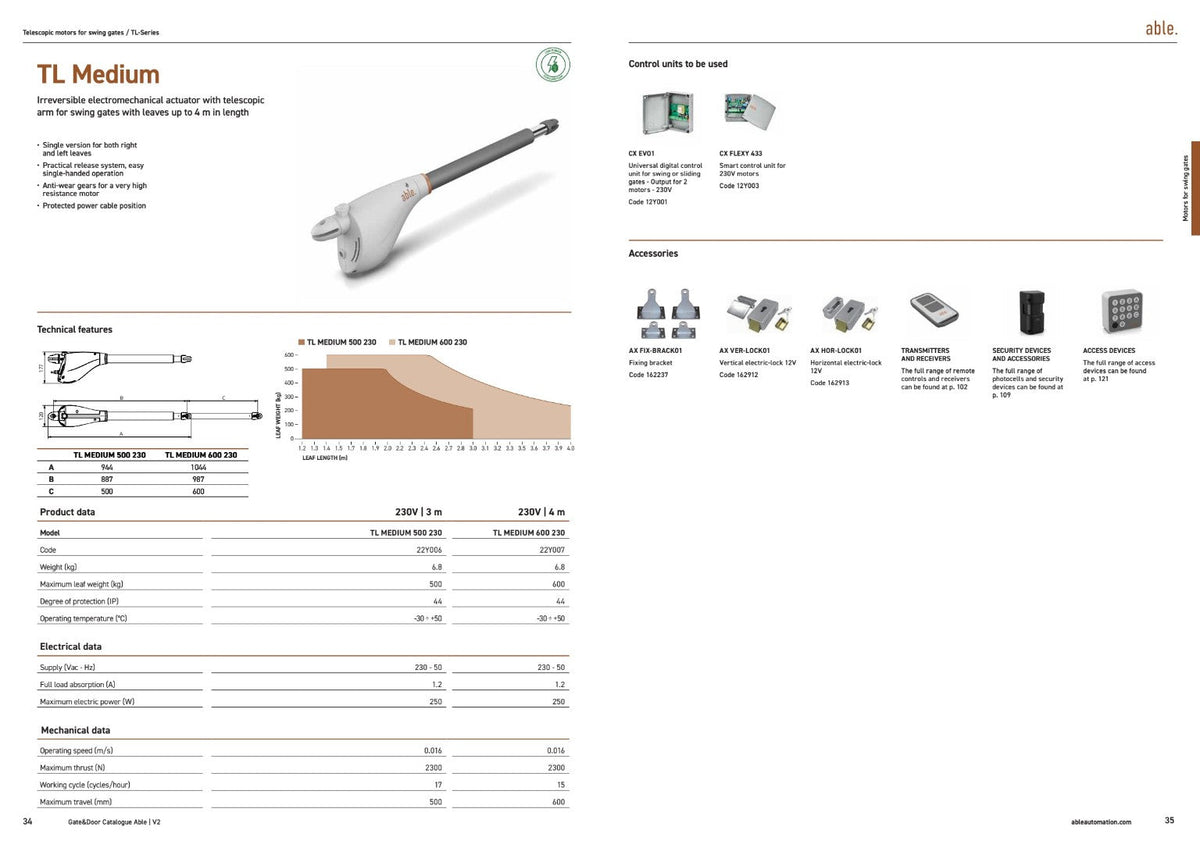

TL Medium 500 230 – up to 3 m
- 230V / 50 Hz
- Maximum leaf length: 3 m
- Maximum leaf weight: 500 kg, subject to the manufacturer selection curve
- IP44
- Operating temperature: -30°C to +50°C
- 250 W, 1.2 A
- Operating speed: 0.016 m/s
- Maximum thrust: 2300 N
- Working cycle: 17 cycles/hour
- Maximum travel: 500 mm
TL Medium 600 230 – up to 4 m
- 230V / 50 Hz
- Maximum leaf length: 4 m
- Maximum leaf weight: 600 kg, subject to the manufacturer selection curve
- IP44
- Operating temperature: -30°C to +50°C
- 250 W, 1.2 A
- Operating speed: 0.016 m/s
- Maximum thrust: 2300 N
- Working cycle: 15 cycles/hour
- Maximum travel: 600 mm
Features and controls
The TL-Series uses a telescopic arm, anti-wear gears for high mechanical resistance, protected power-cable routing and a practical manual-release system. Compatible 230V control solutions include Able CX EV01 and CX FLEXY 433, depending on the selected configuration. Safety and access-control options include photocells, transmitters/receivers, electric locks and access devices.
Selection for Qatar installations
Gate leaf length and weight must be evaluated together using the Able selection curves. For solid or privacy gates, wind exposure can create substantially higher loads than gate weight alone. Hinge condition, post geometry, opening angle and expected operating frequency should therefore be checked before final motor selection.
Request a Quote
Send Comunello Qatar the gate leaf width, approximate weight, gate construction, hinge/post dimensions, site photos and expected daily cycles. We will select the appropriate TL-Series 230V AC operator, control panel and safety accessories.
Frequently asked questions
Which Able TL-Series motor is suitable for my swing gate?
The verified 230V TL range covers gate leaves up to 2.5 m, 3 m and 4 m. Final selection depends on leaf length, actual weight, hinge and pillar geometry, installation dimensions, usage frequency and wind exposure.
What is the difference between TL Small 400, TL Medium 500 and TL Medium 600?
TL Small 400 covers leaves up to 2.5 m, TL Medium 500 covers leaves up to 3 m and TL Medium 600 covers leaves up to 4 m, subject to the manufacturer's corresponding leaf-weight limits and selection curves.
Are these Able TL motors 230V?
Yes. This listing covers the verified TL Small and TL Medium 230V AC models.
Can the Able TL-Series automate a solid privacy gate?
Potentially, but solid gates can create significant wind loads. Gate surface area, site exposure, leaf dimensions, hinge condition and operator capacity should be assessed before final selection.
What information is needed for an Able TL quotation?
Send the gate-leaf width, approximate weight, gate construction, hinge and post dimensions, site photos, location and expected daily operating cycles.
Do you install Able TL-Series motors in Qatar?
Yes. Comunello Qatar provides technical selection, supply, professional installation, commissioning and maintenance for compatible Able TL-Series systems.
Telescopic Travel and Installation Geometry
Required travel depends on the gate's mounting arrangement and opening angle. A longer-stroke actuator does not automatically fit an existing installation. Provide pillar dimensions, hinge offset and photographs of both bracket positions for a model-specific assessment.
Replacement, Safety and Maintenance
A dragging leaf or worn hinge should be corrected before fitting a new TL operator. The installation scope should identify mechanical stops, control equipment and protective devices, followed by commissioning and manual-release handover. Request an AMC with inspection frequency and parts coverage matched to your entrance.
